Manufacturer Part Number: | R747I1150AAH3J |
---|---|
Manufacturer: | Kemet |
Product Category: | Film Capacitors |
Available Quantity: | 9195 Pieces |
Unit Price: | Quote by Email |

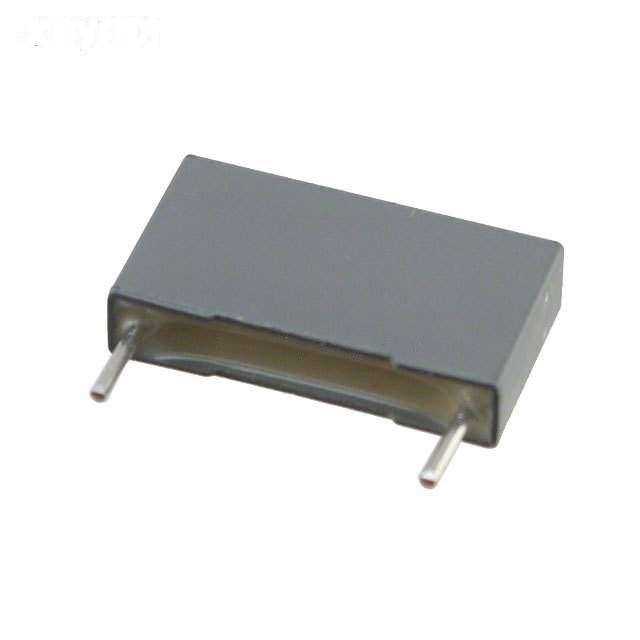

Description: | 1500pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial 0.709" L x 0.197" W (18.00mm x 5.00mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | R747I1150AAH3J Datasheet |
Internal Part Number | 898-R747I1150AAH3J | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Capacitor Basics- Typical Uses for Capacitors | |
Online Catalog | R74 Series | |
Category | Capacitors | |
Family | Film Capacitors | |
Manufacturer | Kemet | |
Series | R74 | |
Packaging | Bulk | |
Part Status | Quote Required | |
Capacitance | 1500pF | |
Tolerance | ±5% | |
Voltage Rating - AC | 700V | |
Voltage Rating - DC | 2000V (2kV) | |
Dielectric Material | Polypropylene (PP), Metallized | |
ESR (Equivalent Series Resistance) | - | |
Operating Temperature | -55°C ~ 125°C | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.709" L x 0.197" W (18.00mm x 5.00mm) | |
Height - Seated (Max) | 0.437" (11.10mm) | |
Termination | PC Pins | |
Lead Spacing | 0.591" (15.00mm) | |
Applications | High Pulse, DV/DT | |
Features | - | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | R747I1150AAH3J | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
R747I1150AAH3J is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of R747I1150AAH3J is new and unused, you can buy R747I1150AAH3J Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for R747I1150AAH3J.
