Manufacturer Part Number: | RCJ-2223 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | Barrel - Audio Connectors |
Available Quantity: | 14519 Pieces |
Unit Price: | Quote by Email |

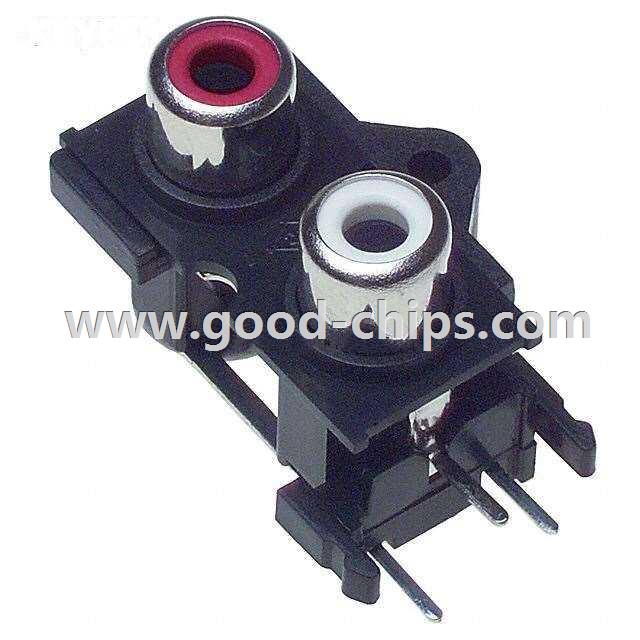

Description: | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RCJ-2223 Datasheet |
Internal Part Number | 898-RCJ-2223 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RCJ-22 Series Cert of Compliance | |
Online Catalog | CUI | |
Category | Connectors, Interconnects | |
Family | Barrel - Audio Connectors | |
Manufacturer | CUI Inc. | |
Series | RCJ | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Phono (RCA) Jack | |
Gender | Female | |
Signal Lines | Mono | |
Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) | |
Actual Diameter | 0.138" (3.50mm ID), 0.327" (8.30mm OD) | |
Number of Positions/Contacts | 2 Sets of 2 Conductors, 3 Contacts | |
Internal Switch(s) | Does Not Contain Switch | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Shielding | Unshielded | |
Features | Board Lock | |
Insulation Color | Red, White | |
Voltage - Rated | 24VDC | |
Current Rating | 5A | |
Mating Length/Depth | - | |
Contact Material - Plating | Nickel | |
Body Material | Brass | |
Body Color | Silver, Black | |
Includes | 1 pc - 1 Connector | |
Standard Package | 324 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RCJ-2223 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RCJ-2223 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of RCJ-2223 is new and unused, you can buy RCJ-2223 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RCJ-2223.
