Manufacturer Part Number: | RCP-011 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | Barrel - Audio Connectors |
Available Quantity: | 11885 Pieces |
Unit Price: | Quote by Email |

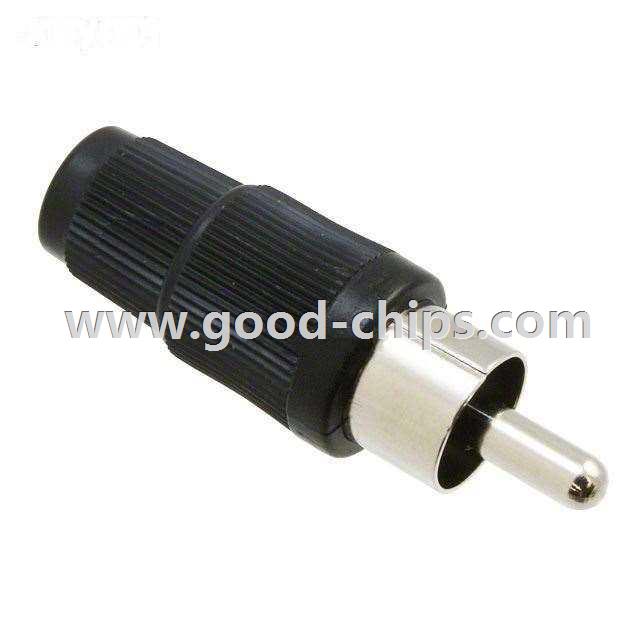

Description: | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Plug Mono Connector Solder Eyelet(s) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RCP-011 Datasheet |
Internal Part Number | 898-RCP-011 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RCP-01x Cert of Compliance | |
Online Catalog | CUI | |
Category | Connectors, Interconnects | |
Family | Barrel - Audio Connectors | |
Manufacturer | CUI Inc. | |
Series | RCP | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Phono (RCA) Plug | |
Gender | Male | |
Signal Lines | Mono | |
Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) | |
Actual Diameter | 0.126" (3.20mm ID), 0.354" (9.00mm OD) | |
Number of Positions/Contacts | 2 Conductors, 2 Contacts | |
Internal Switch(s) | Does Not Contain Switch | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Solder Eyelet(s) | |
Shielding | Unshielded | |
Features | - | |
Insulation Color | - | |
Voltage - Rated | 12VDC | |
Current Rating | 5A | |
Mating Length/Depth | 0.563" (14.30mm) | |
Contact Material - Plating | Nickel | |
Body Material | Brass | |
Body Color | Black | |
Includes | 2 pcs - 1 Connector, 1 Handle | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RCP-011 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RCP-011 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of RCP-011 is new and unused, you can buy RCP-011 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RCP-011.
