Manufacturer Part Number: | RD1-4020 |
---|---|
Manufacturer: | MegaChips Technology America Corporation |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

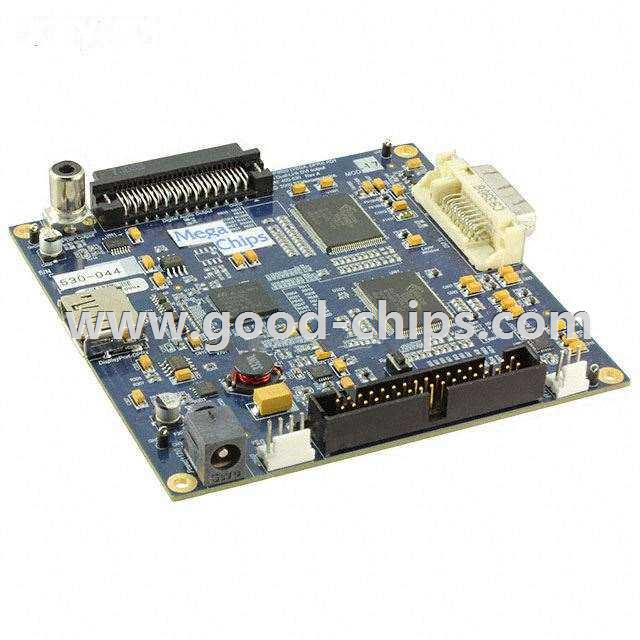

Description: | STDP4020 - Video, Video Processing Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RD1-4020 Datasheet |
Internal Part Number | 898-RD1-4020 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | RD1-4020 BOM RD1-4020 Schematic | |
Online Catalog | STDP4020 Reference Design 1 Board | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | MegaChips Technology America Corporation | |
Series | - | |
Part Status | Active | |
Main Purpose | Video, Video Processing | |
Embedded | - | |
Utilized IC / Part | STDP4020 | |
Primary Attributes | DisplayPort to LVDS or RGB (LVTTL) | |
Secondary Attributes | - | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RD1-4020 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RD1-4020 is in stock for immediate shipping now. We are the distributor of MegaChips Technology America Corporation all series components. The condition of RD1-4020 is new and unused, you can buy RD1-4020 MegaChips Technology America Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RD1-4020.
