Manufacturer Part Number: | RI-29AA |
---|---|
Manufacturer: | Coto Technology |
Product Category: | Magnetic, Reed Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

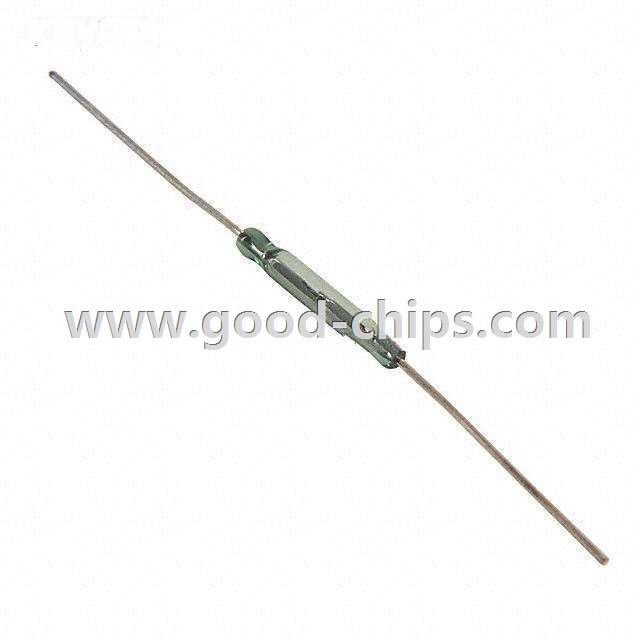

Description: | Glass Body Reed Switch SPST-NO 16 ~ 25AT Operate Range 15W 1A (AC/DC) 140V Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RI-29AA Datasheet |
Internal Part Number | 898-RI-29AA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Switches | |
Family | Magnetic, Reed Switches | |
Manufacturer | Coto Technology | |
Series | RI-29 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Type | Glass Body | |
Circuit | SPST-NO | |
Operate Range | 16 ~ 25AT | |
Release Range | 5 ~ 18AT | |
Current - Switching | 1A (AC/DC) | |
Voltage - Switching AC | 140V | |
Voltage - Switching DC | 200V | |
Power - Rated | 15W | |
Operate Time | 0.25ms | |
Release Time | 0.03ms | |
Mounting Type | Through Hole | |
Termination Style | Axial | |
Length - Overall | 1.811" (46.00mm) | |
Size - Body | 0.071" Dia x 0.531" L (1.80mm x 13.50mm) | |
Height Above Board | - | |
Operating Temperature | -55°C ~ 75°C | |
Capacitance | 0.30pF | |
Current - Carry | 1.25A (AC/DC) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RI-29AA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RI-29AA is in stock for immediate shipping now. We are the distributor of Coto Technology all series components. The condition of RI-29AA is new and unused, you can buy RI-29AA Coto Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RI-29AA.
