| Manufacturer Part Number: | RLB1314-3R3ML |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 10410 Pieces |
| Unit Price: | Quote by Email |

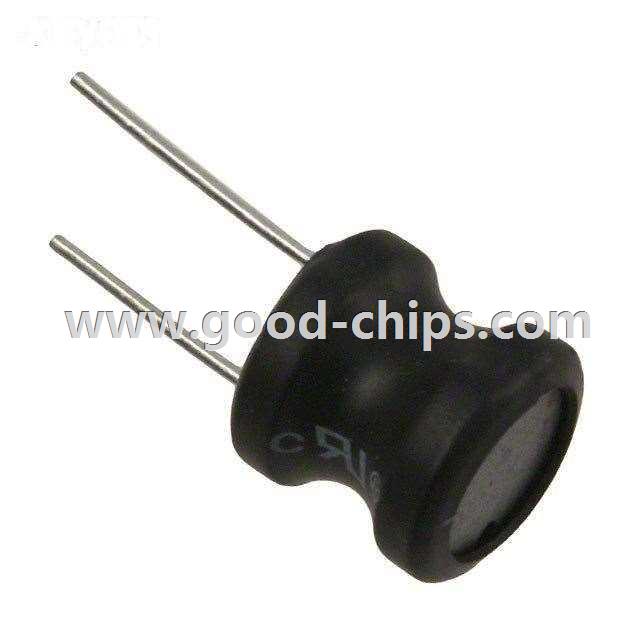

| Description: | 3.3µH Unshielded Wirewound Inductor 5.6A 8 mOhm Max Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RLB1314-3R3ML Datasheet |
| Internal Part Number | 898-RLB1314-3R3ML | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Product Overview | |
| RoHS Information | RLB1314 Series Material Declaration | |
| 3D Model | RLB1314-3R3ML.stp | |
| PCN Assembly/Origin | Magnetic products Oct/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | RLB Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | RLB | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 3.3µH | |
| Tolerance | ±20% | |
| Current Rating | 5.6A | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 8 mOhm Max | |
| Q @ Freq | 90 @ 7.96MHz | |
| Frequency - Self Resonant | 59MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | 1kHz | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 0.461" Dia (11.70mm) | |
| Height - Seated (Max) | 0.512" (13.00mm) | |
| Standard Package | 150 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RLB1314-3R3ML | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RLB1314-3R3ML is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of RLB1314-3R3ML is new and unused, you can buy RLB1314-3R3ML Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RLB1314-3R3ML.
