Manufacturer Part Number: | RP12-4815DAW |
---|---|
Manufacturer: | Recom Power |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONV DC/DC 12W 18-75VIN +/-15V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RP12-4815DAW Datasheet |
Internal Part Number | 898-RP12-4815DAW | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Recom Power | |
Series | POWERLINE RP12-AW | |
Packaging | Tube | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 2 | |
Voltage - Input (Min) | 18V | |
Voltage - Input (Max) | 75V | |
Voltage - Output 1 | 15V | |
Voltage - Output 2 | -15V | |
Voltage - Output 3 | - | |
Current - Output (Max) | 400mA, 400mA | |
Power (Watts) - Manufacture Series | 12W | |
Voltage - Isolation | 1.6kV (1600V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OVP, SCP | |
Mounting Type | Through Hole | |

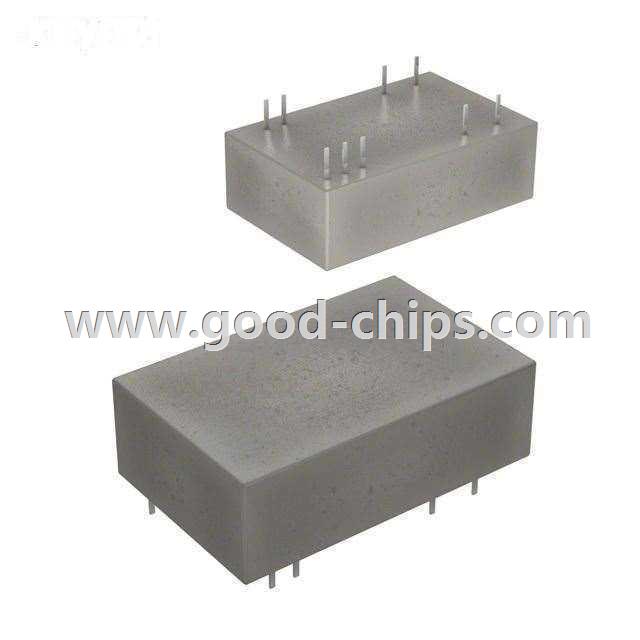

Package / Case | 24-DIP Module (9 Leads) | |
Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | |
Operating Temperature | -40°C ~ 65°C | |
Efficiency | 87% | |
Power (Watts) - Max | 12W | |
Standard Package | 7 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RP12-4815DAW | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RP12-4815DAW is in stock for immediate shipping now. We are the distributor of Recom Power all series components. The condition of RP12-4815DAW is new and unused, you can buy RP12-4815DAW Recom Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RP12-4815DAW.
