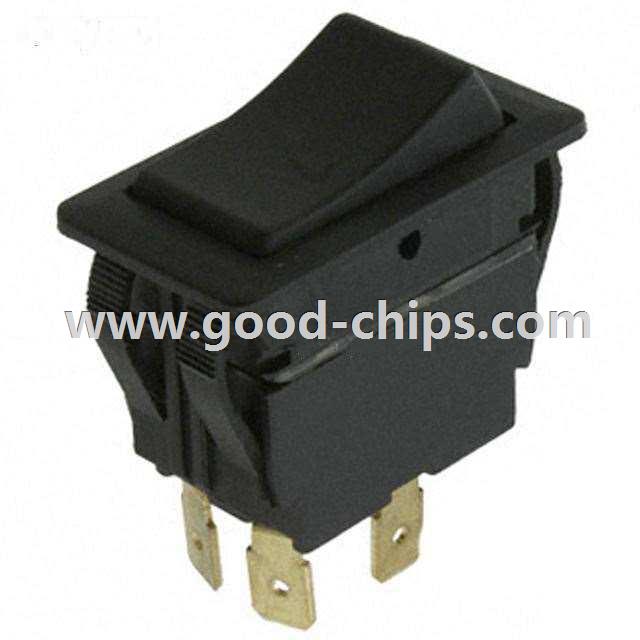

Manufacturer Part Number: | RVW4ED1100 |
---|---|
Manufacturer: | E-Switch |
Product Category: | Rocker Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Rocker Switch DPST-NO 20A (AC) 125V Panel Mount, Snap-In |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RVW4ED1100 Datasheet |
Internal Part Number | 898-RVW4ED1100 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Switch Overview | |
RoHS Information | Switches RoHS Certof Compliance | |
Online Catalog | RVW, LAMB Series | |
Category | Switches | |
Family | Rocker Switches | |
Manufacturer | E-Switch | |
Series | RVW, LAMB | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | DPST-NO | |
Switch Function | Off-Mom | |
Current Rating | 20A (AC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Actuator Type | Concave (Curved) | |
Color - Actuator/Cap | Black | |
Actuator Marking | No Marking | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Panel Mount, Snap-In | |
Termination Style | Quick Connect - 0.250" (6.3mm) | |
Ingress Protection | IP54 - Dust Protected, Water Resistant | |
Features | - | |
Panel Cutout Dimensions | Rectangular - 36.80mm x 21.00mm | |
Operating Temperature | -20°C ~ 55°C | |
Mechanical Life | - | |
Electrical Life | 6,000 Cycles | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RVW4ED1100 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RVW4ED1100 is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of RVW4ED1100 is new and unused, you can buy RVW4ED1100 E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RVW4ED1100.
