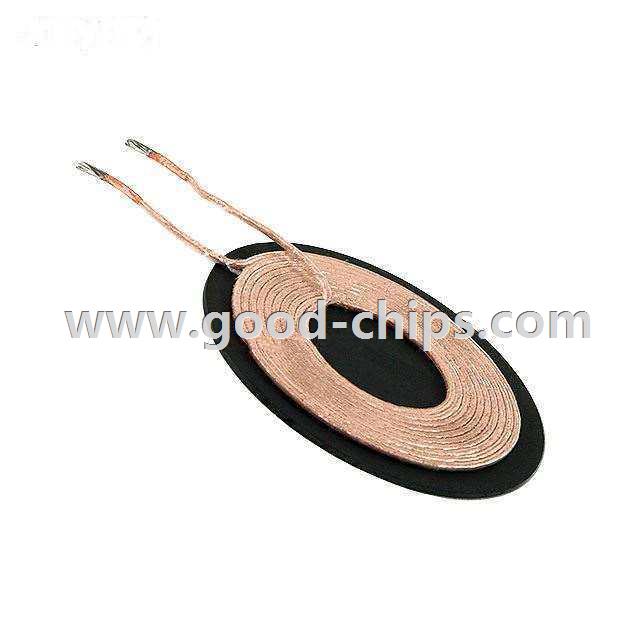

| Manufacturer Part Number: | RWC5050AK060-500 |
|---|---|
| Manufacturer: | Laird-Signal Integrity Products |
| Product Category: | Wireless Charging Coils |
| Available Quantity: | 9052 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1 Coil, 1 Layer 6.5µH Wireless Charging Coil Transmitter 50 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RWC5050AK060-500 Datasheet |
| Internal Part Number | 898-RWC5050AK060-500 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wireless Charging Modules | |
| Online Catalog | Laird-Signal Integrity Products | |
| Category | Inductors, Coils, Chokes | |
| Family | Wireless Charging Coils | |
| Manufacturer | Laird-Signal Integrity Products | |
| Series | RWC | |
| Part Status | Active | |
| Function | Transmitter | |
| Type | 1 Coil, 1 Layer | |
| Inductance | 6.5µH | |
| Tolerance | ±10% | |
| Current Rating | - | |
| Current - Saturation | - | |
| DC Resistance (DCR) | 50 mOhm | |
| Q @ Freq | 70 @ 100kHz | |
| Frequency - Self Resonant | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Size / Dimension | * | |
| Standard Package | 8 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RWC5050AK060-500 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RWC5050AK060-500 is in stock for immediate shipping now. We are the distributor of Laird-Signal Integrity Products all series components. The condition of RWC5050AK060-500 is new and unused, you can buy RWC5050AK060-500 Laird-Signal Integrity Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RWC5050AK060-500.
