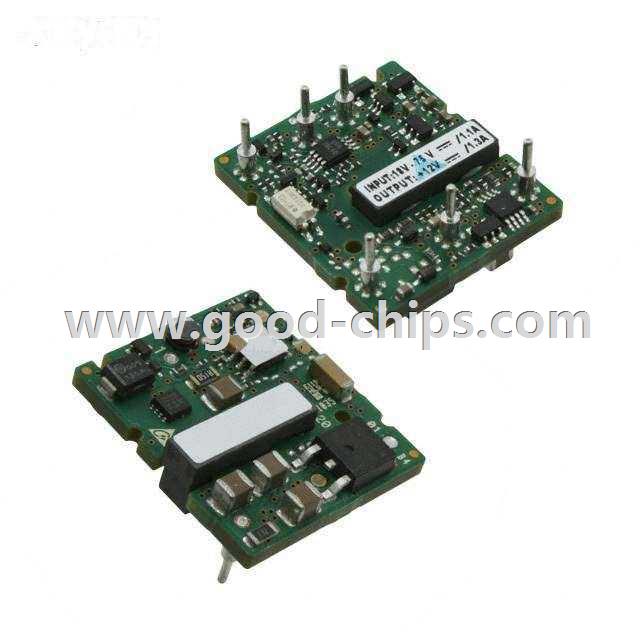

| Manufacturer Part Number: | S36SE12002PRFZ |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | DC DC Converters |
| Available Quantity: | 9247 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE DC/DC 1X1 12V 2A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S36SE12002PRFZ Datasheet |
| Internal Part Number | 898-S36SE12002PRFZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Efficiency Isolated DC/DC Converters Isolated DC/DC Converter Design Considerations | |
| Featured Product | Delphi Series S36SE Converters DC/DC Converters – Delta Product Groups | |
| Online Catalog | Delphi S36SE Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | Delphi S36SE | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 2A | |
| Power (Watts) - Manufacture Series | 25W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 6-DIP Module | |
| Size / Dimension | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.7mm) | |
| Operating Temperature | -40°C ~ 123°C | |
| Efficiency | 87% | |
| Power (Watts) - Max | 25W | |
| Standard Package | 36 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S36SE12002PRFZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S36SE12002PRFZ is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of S36SE12002PRFZ is new and unused, you can buy S36SE12002PRFZ Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S36SE12002PRFZ.
