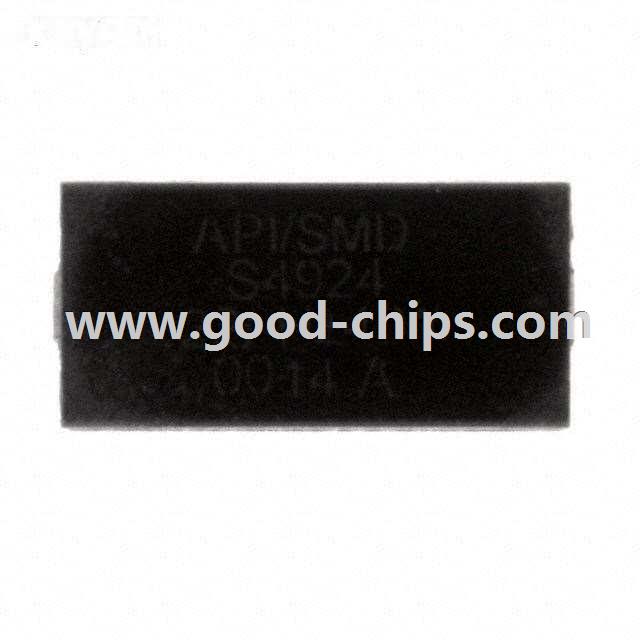

Manufacturer Part Number: | S4924-221K |
---|---|
Manufacturer: | API Delevan Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 220nH Shielded Inductor 2.385A 67 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | S4924-221K Datasheet |
Internal Part Number | 898-S4924-221K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | API Delevan Inc. | |
Series | S4924 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | - | |
Material - Core | Phenolic | |
Inductance | 220nH | |
Tolerance | ±10% | |
Current Rating | 2.385A | |
Current - Saturation | 2.385A | |
Shielding | Shielded | |
DC Resistance (DCR) | 67 mOhm Max | |
Q @ Freq | 49 @ 25MHz | |
Frequency - Self Resonant | 325MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 25MHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.505" L x 0.240" W (12.82mm x 6.09mm) | |
Height - Seated (Max) | 0.220" (5.58mm) | |
Standard Package | 800 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | S4924-221K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
S4924-221K is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of S4924-221K is new and unused, you can buy S4924-221K API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S4924-221K.
