| Manufacturer Part Number: | S6E2C38J0AGV20000 |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

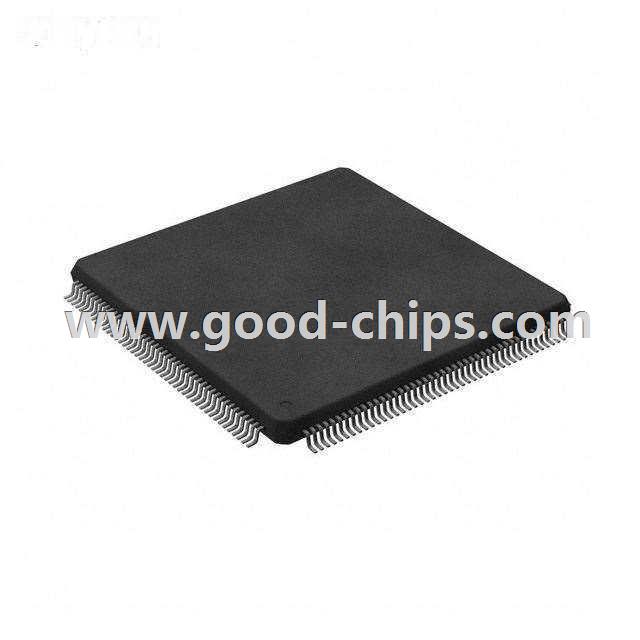

| Description: | ARM® Cortex®-M4F FM4 S6E2C3 Microcontroller IC 32-Bit 200MHz 1MB (1M x 8) FLASH 176-LQFP (24x24) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S6E2C38J0AGV20000 Datasheet |
| Internal Part Number | 898-S6E2C38J0AGV20000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Wafer/Assembly Site Add 15/Dec/2015 Site Chg 02/May/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | FM4 S6E2C3 | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | ARM® Cortex®-M4F | |
| Core Size | 32-Bit | |
| Speed | 200MHz | |
| Connectivity | CSIO, EBI/EMI, I²C, LIN, SD, SPI, UART/USART, USB | |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT | |
| Number of I/O | 152 | |
| Program Memory Size | 1MB (1M x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 128K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 5.5 V | |
| Data Converters | A/D 32x12b, D/A 2x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Package / Case | 176-LQFP | |
| Supplier Device Package | 176-LQFP (24x24) | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S6E2C38J0AGV20000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S6E2C38J0AGV20000 is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of S6E2C38J0AGV20000 is new and unused, you can buy S6E2C38J0AGV20000 Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S6E2C38J0AGV20000.
