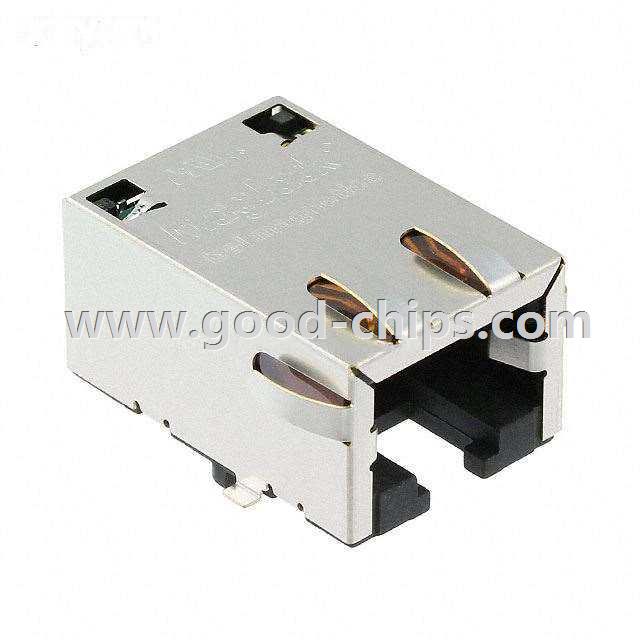

| Manufacturer Part Number: | S811-1X1T-03-F |
|---|---|
| Manufacturer: | Bel Fuse Inc. |
| Product Category: | Modular Connectors - Jacks With Magnetics |
| Available Quantity: | 9185 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1 Port RJ45 Magjack Connector Surface Mount 10/100 Base-T |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | S811-1X1T-03-F Datasheet |
| Internal Part Number | 898-S811-1X1T-03-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Bel - MagJack Integrated Connector Modules Connectivity Solutions Magnetics Solutions | |
| Online Catalog | MagJack® Series | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Jacks With Magnetics | |
| Manufacturer | Bel Fuse Inc. | |
| Series | MagJack® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 10/100 Base-T | |
| Mounting Type | Surface Mount | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.502" (12.75mm) | |
| LED Color | Does Not Contain LED | |
| Number of Cores per Jack | 5 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Guide, Solder Retention | |
| Tab Direction | Down | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Shield Material | Copper Alloy | |
| Housing Material | Phenolic; Polyamide (PA), Nylon | |
| Operating Temperature | 0°C ~ 70°C | |
| Standard Package | 175 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | S811-1X1T-03-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
S811-1X1T-03-F is in stock for immediate shipping now. We are the distributor of Bel Fuse Inc. all series components. The condition of S811-1X1T-03-F is new and unused, you can buy S811-1X1T-03-F Bel Fuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for S811-1X1T-03-F.
