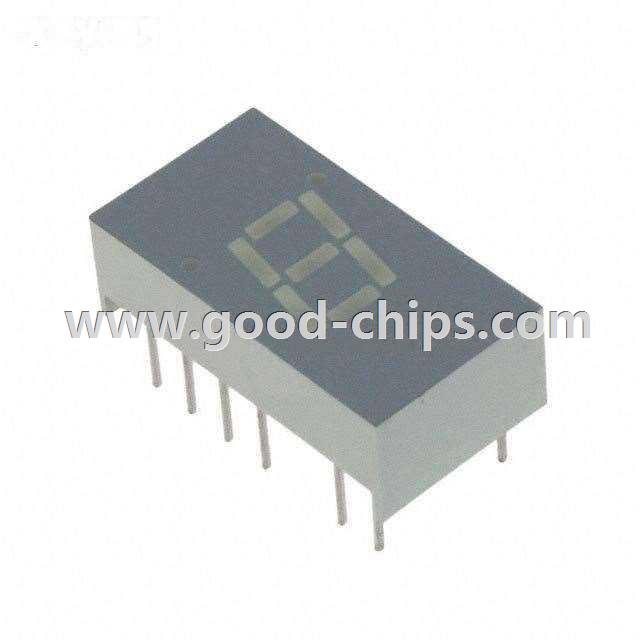

| Manufacturer Part Number: | SA03-11GWA |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 10151 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Green 7-Segment 1 Character Common Anode 2.2V 20mA 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) 14-DIP (0.300", 7.62mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SA03-11GWA Datasheet |
| Internal Part Number | 898-SA03-11GWA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | SA03-11x.sldprt SA03-11x.pro SA03-11x.igs SA03-11x.stp | |
| Online Catalog | 0.3in 1-Digit 7-Segment Display | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Characters | 1 | |
| Size / Dimension | 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) | |
| Digit/Alpha Size | 0.30" (7.62mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Anode | |
| Color | Green | |
| Voltage - Forward (Vf) (Typ) | 2.2V | |
| Current - Test | 20mA | |
| Millicandela Rating | 11mcd | |
| Wavelength - Peak | 565nm | |
| Power Dissipation (Max) | 62.5mW | |
| Package / Case | 14-DIP (0.300", 7.62mm) | |
| Standard Package | 26 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SA03-11GWA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SA03-11GWA is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of SA03-11GWA is new and unused, you can buy SA03-11GWA Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SA03-11GWA.
