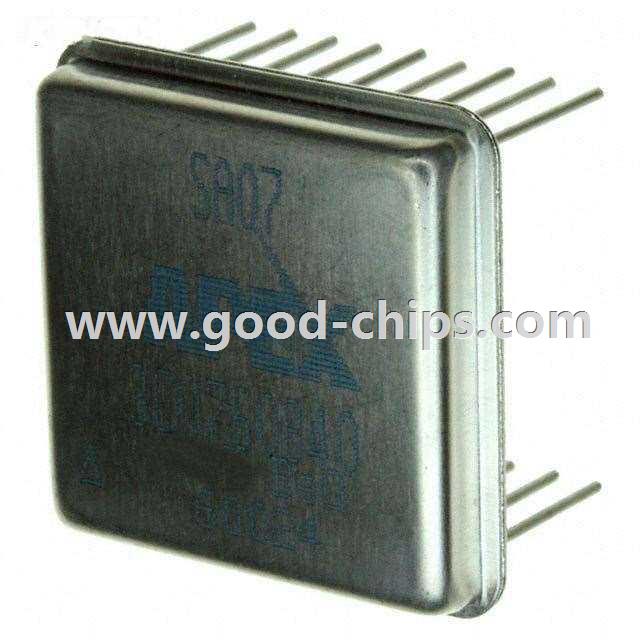

| Manufacturer Part Number: | SA07 |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MOTOR DRIVER PAR 18DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SA07 Datasheet |
| Internal Part Number | 898-SA07 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Output Configuration | Half Bridge (2) | |
| Applications | DC Motors, General Purpose | |
| Interface | PWM | |
| Load Type | Inductive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | 550 mOhm (Max) | |
| Current - Output / Channel | 5A | |
| Current - Peak Output | 7A | |
| Voltage - Supply | 10 V ~ 16 V | |
| Voltage - Load | 5 V ~ 40 V | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Features | - | |
| Fault Protection | Over Temperature | |
| Mounting Type | Through Hole | |
| Package / Case | 18-DIP Module | |
| Supplier Device Package | 18-DIP | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SA07 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SA07 is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of SA07 is new and unused, you can buy SA07 Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SA07.
