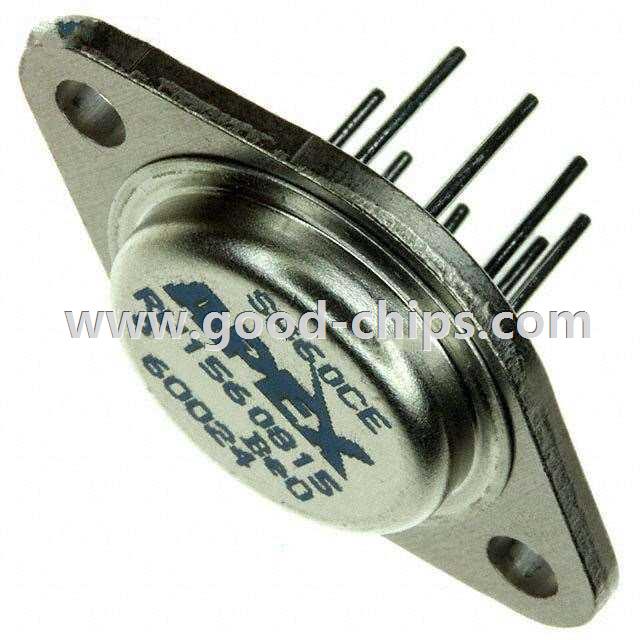

| Manufacturer Part Number: | SA50CE |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MOTOR DRIVER PAR TO3-8 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SA50CE Datasheet |
| Internal Part Number | 898-SA50CE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Analog Portfolio | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Packaging | Tube | |
| Part Status | Active | |
| Output Configuration | Half Bridge (2) | |
| Applications | DC Motors, General Purpose | |
| Interface | On/Off | |
| Load Type | Inductive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | 400 mOhm LS + HS | |
| Current - Output / Channel | 5A | |
| Current - Peak Output | 7A | |
| Voltage - Supply | 9.5 V ~ 15 V | |
| Voltage - Load | 80V (Max) | |
| Operating Temperature | -40°C ~ 175°C (TJ) | |
| Features | - | |
| Fault Protection | - | |
| Mounting Type | Through Hole | |
| Package / Case | TO-3-8 | |
| Supplier Device Package | TO-3-8 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SA50CE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SA50CE is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of SA50CE is new and unused, you can buy SA50CE Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SA50CE.
