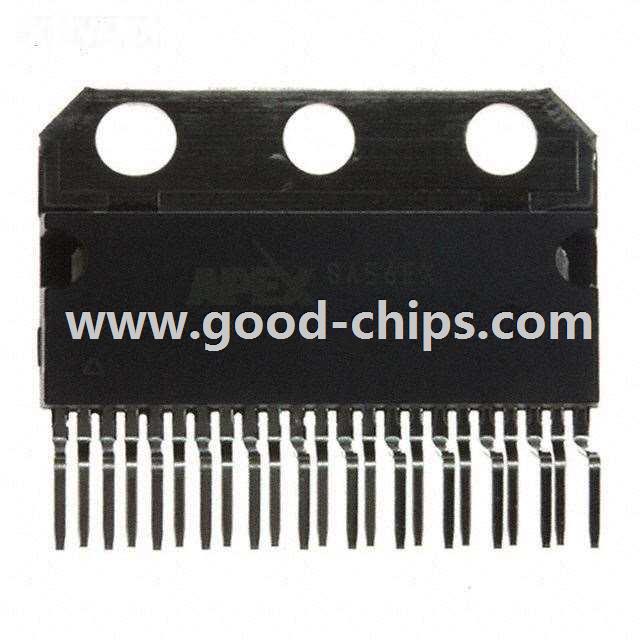

| Manufacturer Part Number: | SA56EX |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MOTOR DRIVER PAR 23SIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SA56EX Datasheet |
| Internal Part Number | 898-SA56EX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Output Configuration | Half Bridge (2) | |
| Applications | DC Motors, General Purpose | |
| Interface | PWM | |
| Load Type | Inductive | |
| Technology | DMOS | |
| Rds On (Typ) | 270 mOhm LS, 230 mOhm HS | |
| Current - Output / Channel | 5A | |
| Current - Peak Output | 10A | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Voltage - Load | 12 V ~ 60 V | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Features | Status Flag | |
| Fault Protection | Over Temperature | |
| Mounting Type | Through Hole | |
| Package / Case | 23-SIP Formed Leads | |
| Supplier Device Package | 23-SIP | |
| Standard Package | 16 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SA56EX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SA56EX is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of SA56EX is new and unused, you can buy SA56EX Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SA56EX.
