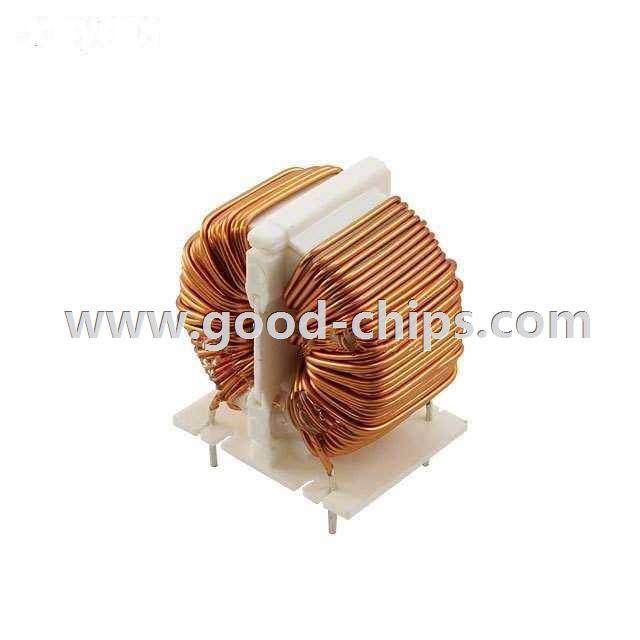

| Manufacturer Part Number: | SC-05-80J |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 8mH @ 100kHz 2 Line Common Mode Choke Through Hole 4A DCR 90 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SC-05-80J Datasheet |
| Internal Part Number | 898-SC-05-80J | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | AC Line Filters | |
| Online Catalog | SC-J Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Kemet | |
| Series | SC | |
| Packaging | Bulk | |
| Part Status | Active | |
| Filter Type | Power Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 8mH @ 100kHz | |
| Current Rating (Max) | 4A | |
| DC Resistance (DCR) (Max) | 90 mOhm | |
| Voltage Rating - DC | 250V | |
| Voltage Rating - AC | 250V | |
| Operating Temperature | -25°C ~ 120°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 1.339" L x 0.906" W (34.00mm x 23.00mm) | |
| Height (Max) | 1.299" (33.00mm) | |
| Package / Case | Vertical, 4 PC Pin | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SC-05-80J | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SC-05-80J is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of SC-05-80J is new and unused, you can buy SC-05-80J Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SC-05-80J.
