| Manufacturer Part Number: | SC10-21SRWA |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9091 Pieces |
| Unit Price: | Quote by Email |

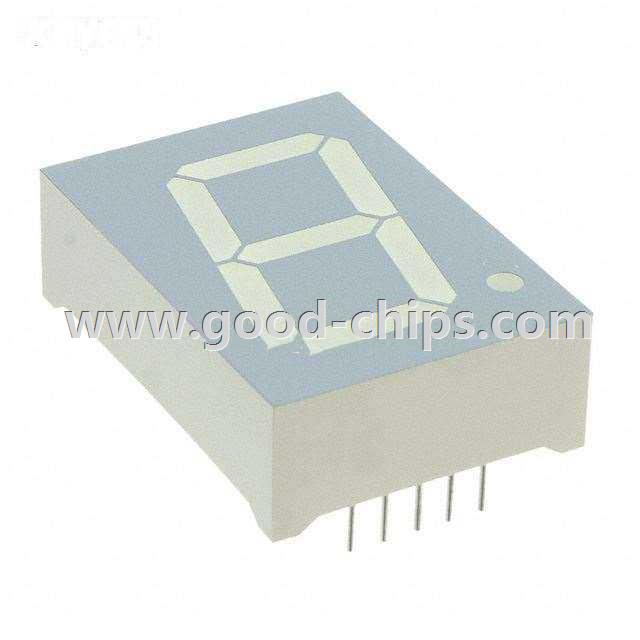

| Description: | Character LED Display Module Red 7-Segment 1 Character Common Cathode 3.7V 20mA 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) 10-DIP (1.200", 30.48mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SC10-21SRWA Datasheet |
| Internal Part Number | 898-SC10-21SRWA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | SA10-21x.igs SA10-21x.pro SA10-21x.sldprt SA10-21x.stp | |
| Online Catalog | 1.0in 1-Digit 7-Segment Through Hole Displays | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Characters | 1 | |
| Size / Dimension | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) | |
| Digit/Alpha Size | 1.00" (25.40mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Cathode | |
| Color | Red | |
| Voltage - Forward (Vf) (Typ) | 3.7V | |
| Current - Test | 20mA | |
| Millicandela Rating | 120mcd | |
| Wavelength - Peak | 660nm | |
| Power Dissipation (Max) | 150mW | |
| Package / Case | 10-DIP (1.200", 30.48mm) | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SC10-21SRWA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SC10-21SRWA is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of SC10-21SRWA is new and unused, you can buy SC10-21SRWA Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SC10-21SRWA.
