Manufacturer Part Number: | SD0603S040S0R2 |
---|---|
Manufacturer: | AVX Corporation |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 57010 Pieces |
Unit Price: | Quote by Email |

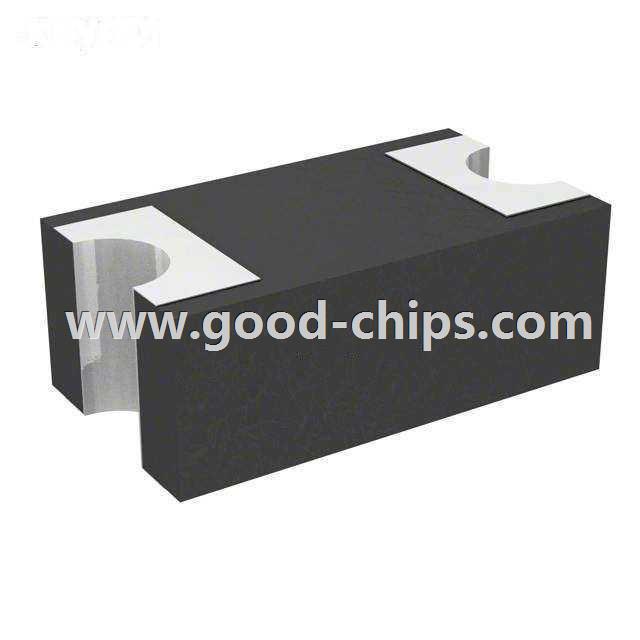

Description: | DIODE SCHOTTKY 40V 200MA 0603 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SD0603S040S0R2 Datasheet |
Internal Part Number | 898-SD0603S040S0R2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Schottky Barrier Rectifier Diode Schottky Diodes | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | Schottky Barrier Rectifier Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | AVX Corporation | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 40V | |
Current - Average Rectified (Io) | 200mA (DC) | |
Voltage - Forward (Vf) (Max) @ If | 450mV @ 200mA | |
Speed | Small Signal =< 200mA (Io), Any Speed | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 1µA @ 40V | |
Capacitance @ Vr, F | - | |
Mounting Type | Surface Mount | |
Package / Case | 0603 (1608 Metric) | |
Supplier Device Package | 0603 (1608 Metric) | |
Operating Temperature - Junction | -55°C ~ 125°C | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SD0603S040S0R2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SD0603S040S0R2 is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of SD0603S040S0R2 is new and unused, you can buy SD0603S040S0R2 AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SD0603S040S0R2.
