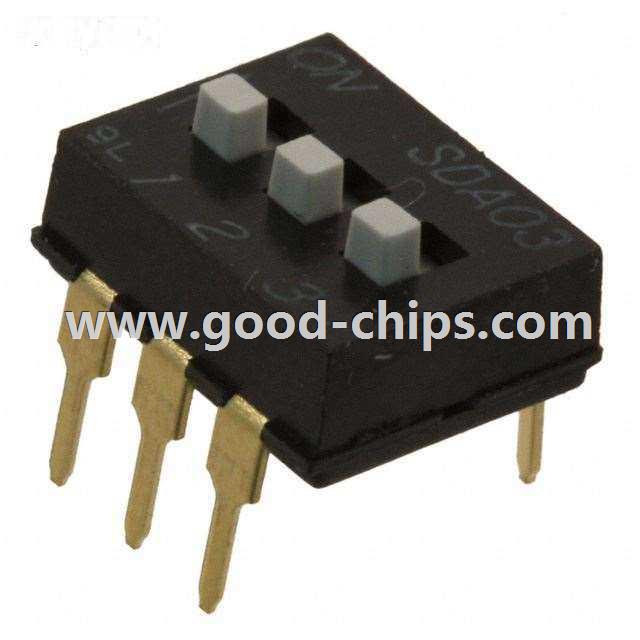

| Manufacturer Part Number: | SDA03H1BD |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | DIP Switches |
| Available Quantity: | 9179 Pieces |
| Unit Price: | Quote by Email |
| Description: | Dip Switch SPST 3 Position Through Hole Slide (Standard) Actuator 25mA 24VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SDA03H1BD Datasheet |
| Internal Part Number | 898-SDA03H1BD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches Industrial Switches for Safety and Security | |
| Featured Product | Industrial Switches – C&K Components | DigiKey | |
| Online Catalog | SDA Series | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | C&K Components | |
| Series | SDA | |
| Packaging | Tube | |
| Part Status | Active | |
| Circuit | SPST | |
| Number of Positions | 3 | |
| Current Rating | 25mA | |
| Voltage Rating | 24VDC | |
| Actuator Type | Slide (Standard) | |
| Actuator Level | Raised | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Height Above Board | 0.228" (5.80mm) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | - | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.378" (9.60mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 1,000 Cycles | |
| Electrical Life | 1,000 Cycles | |
| Standard Package | 45 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SDA03H1BD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SDA03H1BD is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of SDA03H1BD is new and unused, you can buy SDA03H1BD C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SDA03H1BD.
