Manufacturer Part Number: | SESD1004Q4UG-0030-088 |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | TVS - Diodes |
Available Quantity: | 29010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 7VWM 13VC DFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SESD1004Q4UG-0030-088 Datasheet |
Internal Part Number | 898-SESD1004Q4UG-0030-088 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Silicon ESD Protection Devices SESD Series | |
PCN Other | Circuit Protection Products Availabe 27/Jun/2016 | |
Online Catalog | SPA® SESD Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Littelfuse Inc. | |
Series | SESD, SPA® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | 4 | |
Bidirectional Channels | - | |
Voltage - Reverse Standoff (Typ) | 7V (Max) | |
Voltage - Breakdown (Min) | 8.8V (Typ) | |
Voltage - Clamping (Max) @ Ipp | 13V (Typ) | |
Current - Peak Pulse (10/1000µs) | 2.2A (8/20µs) | |
Power - Peak Pulse | - | |
Power Line Protection | No | |
Applications | HDMI | |
Capacitance @ Frequency | 0.3pF @ 3GHz | |
Operating Temperature | -55°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |

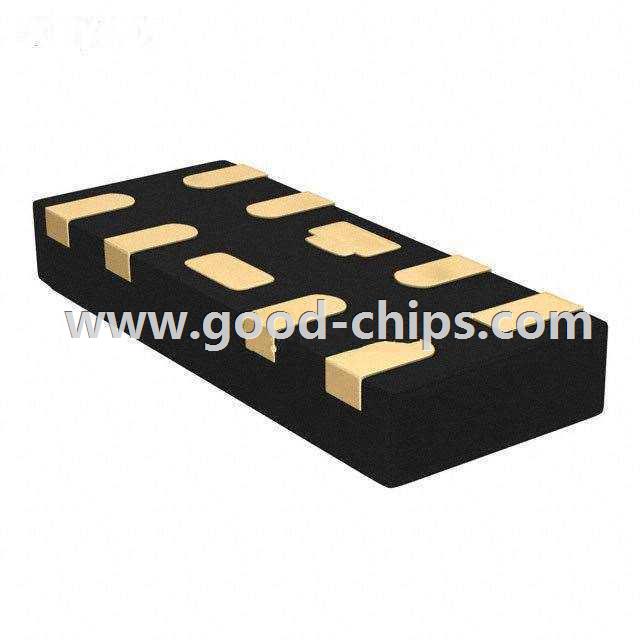

Package / Case | 10-XFDFN | |
Supplier Device Package | 10-XDFN (1x2.5) | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SESD1004Q4UG-0030-088 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SESD1004Q4UG-0030-088 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of SESD1004Q4UG-0030-088 is new and unused, you can buy SESD1004Q4UG-0030-088 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SESD1004Q4UG-0030-088.
