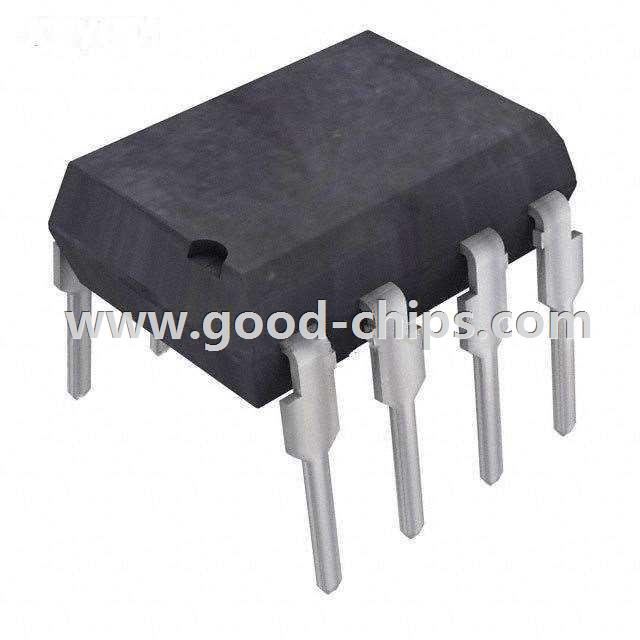

| Manufacturer Part Number: | SFH6702 |
|---|---|
| Manufacturer: | Vishay Semiconductor Opto Division |
| Product Category: | Optoisolators - Logic Output |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Logic Output Optoisolator 5MBd Push-Pull, Totem Pole 5300Vrms 1 Channel 1kV/µs CMTI 8-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SFH6702 Datasheet |
| Internal Part Number | 898-SFH6702 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | EOL 29/Jan/2016 | |
| Online Catalog | SFH6700, 6701, 6702, 6705, 6711, 6712, 6719 Series | |
| Category | Isolators | |
| Family | Optoisolators - Logic Output | |
| Manufacturer | Vishay Semiconductor Opto Division | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Last Time Buy | |
| Number of Channels | 1 | |
| Inputs - Side 1/Side 2 | 1/0 | |
| Voltage - Isolation | 5300Vrms | |
| Common Mode Transient Immunity (Min) | 1kV/µs | |
| Input Type | DC | |
| Output Type | Push-Pull, Totem Pole | |
| Current - Output / Channel | 25mA | |
| Data Rate | 5MBd | |
| Propagation Delay tpLH / tpHL (Max) | 300ns, 300ns | |
| Rise / Fall Time (Typ) | 40ns, 10ns | |
| Voltage - Forward (Vf) (Typ) | 1.6V | |
| Current - DC Forward (If) (Max) | 10mA | |
| Voltage - Supply | 4.5 V ~ 15 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 8-DIP | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SFH6702 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SFH6702 is in stock for immediate shipping now. We are the distributor of Vishay Semiconductor Opto Division all series components. The condition of SFH6702 is new and unused, you can buy SFH6702 Vishay Semiconductor Opto Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SFH6702.
