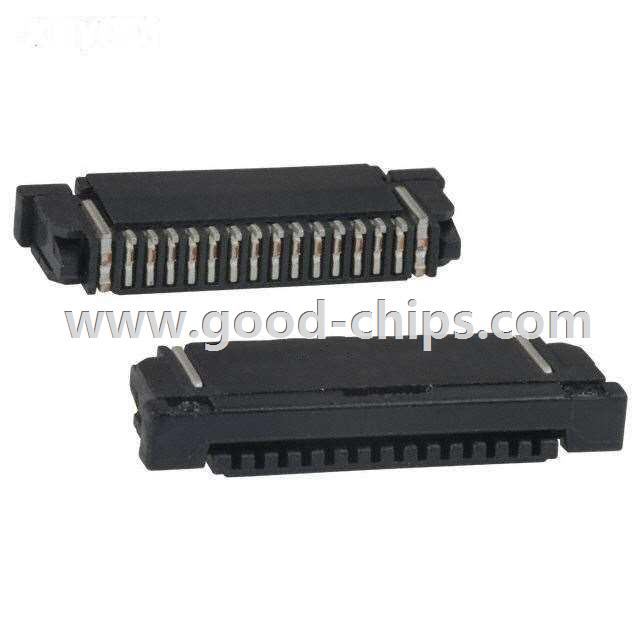

| Manufacturer Part Number: | SFR14R-1STE1LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 14 Position FFC, FPC Connector Contacts, Bottom 0.031" (0.80mm) Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SFR14R-1STE1LF Datasheet |
| Internal Part Number | 898-SFR14R-1STE1LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | SFR Series 05/Sept/2010 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | SFR | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Flat Flex Type | FFC, FPC | |
| Mounting Type | Surface Mount, Right Angle | |
| Connector/Contact Type | Contacts, Bottom | |
| Number of Positions | 14 | |
| Pitch | 0.031" (0.80mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.30mm, 0.33mm | |
| Height Above Board | 0.098" (2.50mm) | |
| Locking Feature | Slide Lock | |
| Cable End Type | Straight or Tapered | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Tin | |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled | |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled | |
| Features | Zero Insertion Force (ZIF) | |
| Voltage Rating | - | |
| Operating Temperature | - | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | - | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SFR14R-1STE1LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SFR14R-1STE1LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of SFR14R-1STE1LF is new and unused, you can buy SFR14R-1STE1LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SFR14R-1STE1LF.
