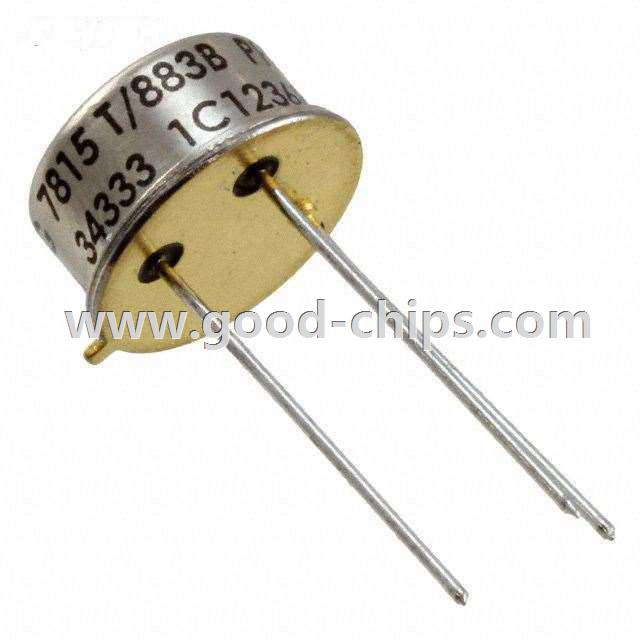

Manufacturer Part Number: | SG7815T-883B |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | PMIC - Voltage Regulators - Linear |
Available Quantity: | 9108 Pieces |
Unit Price: | Quote by Email |
Description: | Linear Voltage Regulator IC Positive Fixed 1 Output 15V 500mA TO-39 |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SG7815T-883B Datasheet |
Internal Part Number | 898-SG7815T-883B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | High-Reliability Semiconductors | |
Online Catalog | > 10V | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - Linear | |
Manufacturer | Microsemi IRE Division | |
Series | Military, MIL-STD-883 | |
Packaging | Bulk | |
Part Status | Active | |
Regulator Topology | Positive Fixed | |
Voltage - Output | 15V | |
Current - Output | 500mA | |
Voltage - Dropout (Typical) | 2V @ 500mA | |
Number of Regulators | 1 | |
Voltage - Input | Up to 35V | |
Current - Limit (Min) | 500mA | |
Operating Temperature | -55°C ~ 125°C | |
Mounting Type | Through Hole | |
Package / Case | TO-39-3 Lens Top Metal Can | |
Supplier Device Package | TO-39 | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SG7815T-883B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SG7815T-883B is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of SG7815T-883B is new and unused, you can buy SG7815T-883B Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SG7815T-883B.
