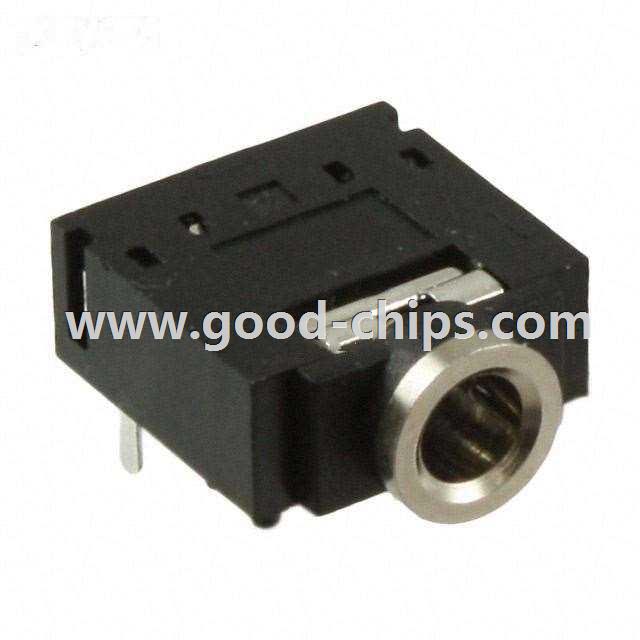

SJ1-3525N

SJ1-3525N
Manufacturer Part Number:SJ1-3525N
Manufacturer:
Product Category:Barrel - Audio Connectors
Available Quantity:23365 Pieces
Unit Price:Quote by Email
Description:3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo Connector Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: SJ1-3525N Datasheet
SJ1-3525N´s Parameters
Internal Part Number898-SJ1-3525N
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationSJ1-352xN Series Cert of Compliance
3D ModelSJ1-3525N
PCN Design/SpecificationMultiple Devices Plating 19/Sep/2014
Online Catalog CUI
CategoryConnectors, Interconnects
FamilyBarrel - Audio Connectors
ManufacturerCUI Inc.
SeriesSJ1
PackagingBulk
Part StatusActive
Connector TypePhone Jack
GenderFemale
Signal LinesStereo
Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter0.142" (3.60mm)
Number of Positions/Contacts3 Conductors, 5 Contacts
Internal Switch(s)Two Switches
Mounting TypeThrough Hole, Right Angle
TerminationSolder
ShieldingUnshielded
Features-
Insulation Color-
Voltage - Rated12VDC
Current Rating1A
Mating Length/Depth0.551" (14.00mm)
Contact Material - PlatingTin
Body MaterialBrass
Body ColorSilver, Black
Includes1 pc - 1 Connector
Standard Package 160
Weight0.001 KG
ApplicationEmail for details
Replacement PartSJ1-3525N
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

SJ1-3525N is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of SJ1-3525N is new and unused, you can buy SJ1-3525N CUI Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for SJ1-3525N.
