| Manufacturer Part Number: | SKY13293-340LF |
|---|---|
| Manufacturer: | Skyworks Solutions Inc. |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC DBS 2.15GHz 50 Ohm 20-QFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SKY13293-340LF Datasheet |
| Internal Part Number | 898-SKY13293-340LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 01/Oct/2014 | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | Skyworks Solutions Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Frequency - Lower | 250MHz | |
| Frequency - Upper | 2.15GHz | |
| Isolation @ Frequency | 45dB @ 2.15GHz (typ) | |
| Insertion Loss @ Frequency | 9dB @ 2.15GHz | |
| IIP3 | 27dBm (typ) | |
| Topology | - | |
| Circuit | - | |
| P1dB | 15dBm (typ) IP1dB | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | 3 V ~ 5.5 V | |
| RF Type | DBS | |

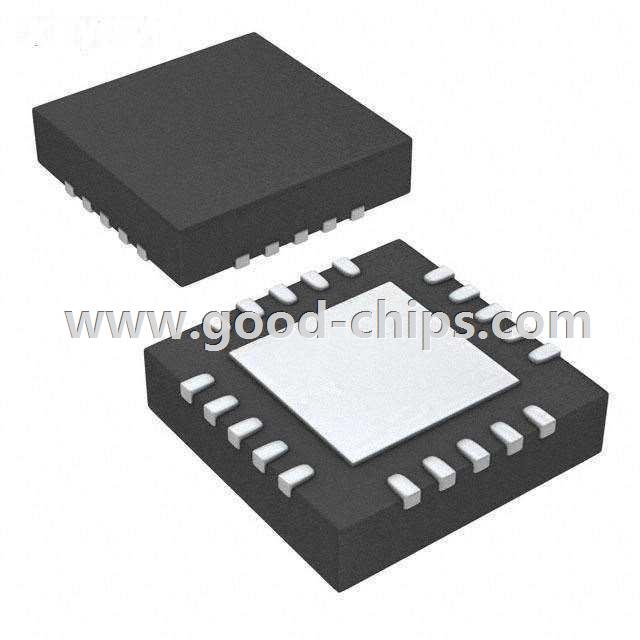

| Package / Case | 20-WFQFN Exposed Pad | |
| Supplier Device Package | 20-QFN (4x4) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SKY13293-340LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SKY13293-340LF is in stock for immediate shipping now. We are the distributor of Skyworks Solutions Inc. all series components. The condition of SKY13293-340LF is new and unused, you can buy SKY13293-340LF Skyworks Solutions Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SKY13293-340LF.
