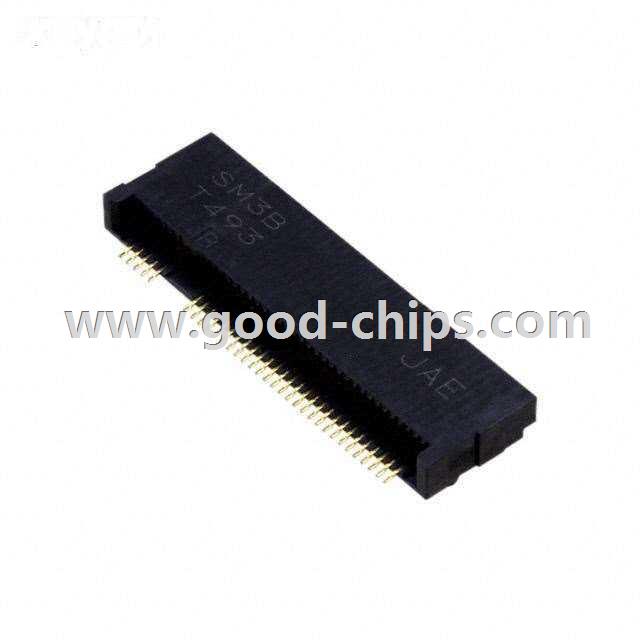

| Manufacturer Part Number: | SM3ZS067U215ABR1500 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | NGFF CARD EDGE M.2 2.15MM B KEY |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SM3ZS067U215ABR1500 Datasheet |
| Internal Part Number | 898-SM3ZS067U215ABR1500 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Memory Modules, the SM3 and MM60 Series of Connectors | |
| Online Catalog | SM3 Series | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | JAE Electronics | |
| Series | SM3 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Card Type | Non Specified - Dual Edge | |
| Gender | Female | |
| Number of Positions/Bay/Row | - | |
| Number of Positions | 67 | |
| Card Thickness | 0.031" (0.79mm) | |
| Number of Rows | 2 | |
| Pitch | 0.020" (0.50mm) | |
| Features | Board Guide | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 5.11µin (0.13µm) | |
| Contact Type | - | |
| Color | - | |
| Flange Feature | - | |
| Operating Temperature | -40°C ~ 80°C | |
| Material - Insulation | Thermoplastic | |
| Read Out | Dual | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SM3ZS067U215ABR1500 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SM3ZS067U215ABR1500 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of SM3ZS067U215ABR1500 is new and unused, you can buy SM3ZS067U215ABR1500 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SM3ZS067U215ABR1500.
