Manufacturer Part Number: | SM6T7V5AHE3/5B |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 6.4VWM 11.3VC SMB |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SM6T7V5AHE3/5B Datasheet |
Internal Part Number | 898-SM6T7V5AHE3/5B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Vishay Semiconductor Diodes Division | |
Series | Automotive, AEC-Q101, SM6T, TransZorb® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | 1 | |
Bidirectional Channels | - | |
Voltage - Reverse Standoff (Typ) | 6.4V | |
Voltage - Breakdown (Min) | 7.13V | |
Voltage - Clamping (Max) @ Ipp | 11.3V | |
Current - Peak Pulse (10/1000µs) | 53A | |
Power - Peak Pulse | 600W | |
Power Line Protection | No | |
Applications | Automotive | |
Capacitance @ Frequency | - | |
Operating Temperature | -65°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

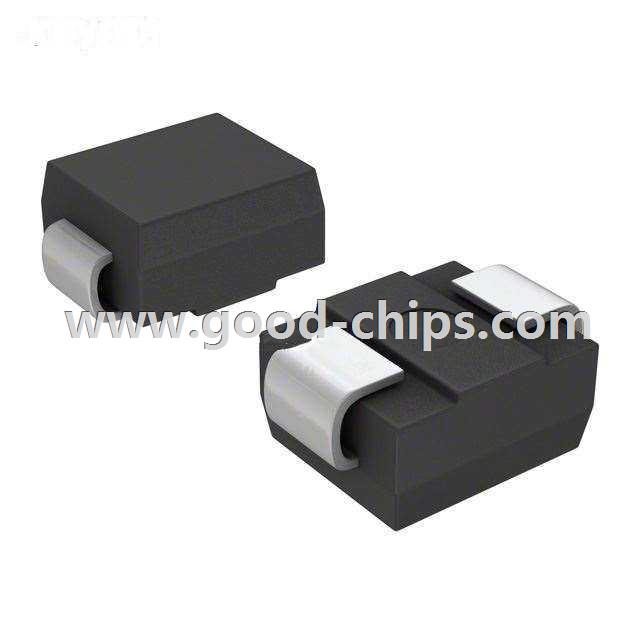

Package / Case | DO-214AA, SMB | |
Supplier Device Package | DO-214AA (SMBJ) | |
Standard Package | 3,200 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SM6T7V5AHE3/5B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SM6T7V5AHE3/5B is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of SM6T7V5AHE3/5B is new and unused, you can buy SM6T7V5AHE3/5B Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SM6T7V5AHE3/5B.
