| Manufacturer Part Number: | SMBJ7.5A |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | TVS - Diodes |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 7.5VWM 12.9VC SMB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SMBJ7.5A Datasheet |
| Internal Part Number | 898-SMBJ7.5A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Transient Voltage Suppression (TVS) Diodes | |
| Featured Product | Littelfuse and Digi-Key offer kits for popular TVS SMD diodes | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | SMBJ Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Littelfuse Inc. | |
| Series | SMBJ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 7.5V | |
| Voltage - Breakdown (Min) | 8.33V | |
| Voltage - Clamping (Max) @ Ipp | 12.9V | |
| Current - Peak Pulse (10/1000µs) | 46.6A | |
| Power - Peak Pulse | 600W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

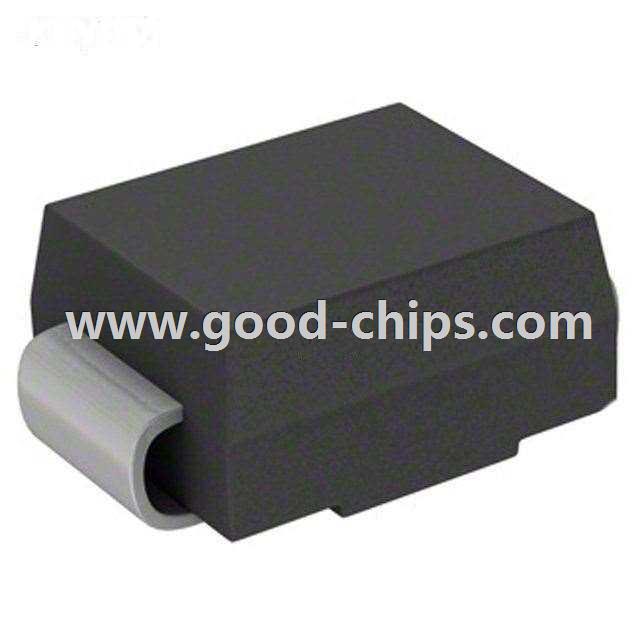

| Package / Case | DO-214AA, SMB | |
| Supplier Device Package | DO-214AA (SMBJ) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SMBJ7.5A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SMBJ7.5A is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of SMBJ7.5A is new and unused, you can buy SMBJ7.5A Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMBJ7.5A.
