| Manufacturer Part Number: | SMBS001D00 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9110 Pieces |
| Unit Price: | Quote by Email |

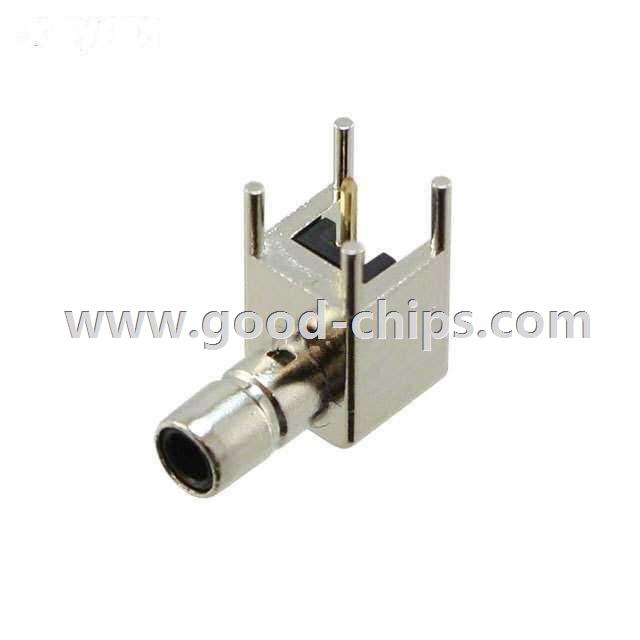

| Description: | SMB Connector Receptacle, Male Pin 50 Ohm Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SMBS001D00 Datasheet |
| Internal Part Number | 898-SMBS001D00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SMB Connector Overview | |
| Featured Product | SMB Series Connectors | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | JAE Electronics | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | SMB | |
| Connector Type | Receptacle, Male Pin | |
| Contact Termination | Solder | |
| Shield Termination | Solder | |
| Impedance | 50 Ohm | |
| Mounting Type | Through Hole, Right Angle | |
| Cable Group | - | |
| Fastening Type | Snap-On | |
| Frequency - Max | 3GHz | |
| Features | - | |
| Housing Color | Silver | |
| Ingress Protection | - | |
| Body Material | Zinc Alloy | |
| Body Finish | Nickel | |
| Center Contact Material | Phosphor Bronze | |
| Center Contact Plating | Gold | |
| Dielectric Material | Syndiotactic Polystyrene (SPS) | |
| Voltage Rating | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SMBS001D00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SMBS001D00 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of SMBS001D00 is new and unused, you can buy SMBS001D00 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMBS001D00.
