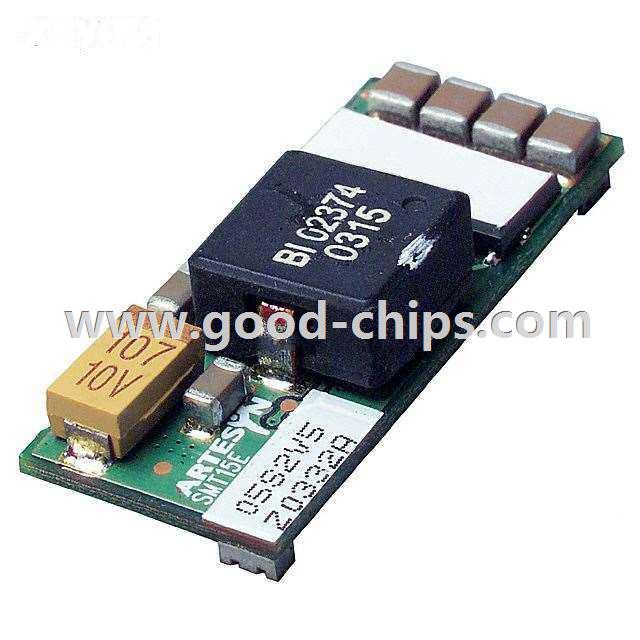

Manufacturer Part Number: | SMT15E-05S2V5 |
---|---|
Manufacturer: | Artesyn Embedded Technologies |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONV DC/DC 5VIN 2.5V OUT 15A SMD |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SMT15E-05S2V5 Datasheet |
Internal Part Number | 898-SMT15E-05S2V5 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | SMT15E Application Notes | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Artesyn Embedded Technologies | |
Series | SMT15E | |
Packaging | Tray | |
Part Status | Obsolete | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 3V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output 1 | 2.5V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 15A | |
Power (Watts) - Manufacture Series | 41W | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OTP, SCP | |
Mounting Type | Surface Mount | |
Package / Case | 6-SMD Module | |
Size / Dimension | 1.30" L x 0.53" W x 0.32" H (33.0mm x 13.5mm x 8.1mm) | |
Operating Temperature | -40°C ~ 100°C | |
Efficiency | 93.5% | |
Power (Watts) - Max | 41W | |
Standard Package | 90 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SMT15E-05S2V5 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SMT15E-05S2V5 is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of SMT15E-05S2V5 is new and unused, you can buy SMT15E-05S2V5 Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMT15E-05S2V5.
