Manufacturer Part Number: | SN74LVC3G04YEPR |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Logic - Gates and Inverters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Inverter IC 3 Channel 8-DSBGA, 8-WCSP (1.9x0.9) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SN74LVC3G04YEPR Datasheet |
Internal Part Number | 898-SN74LVC3G04YEPR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Gates and Inverters | |
Manufacturer | Texas Instruments | |
Series | 74LVC | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Logic Type | Inverter | |
Number of Circuits | 3 | |
Number of Inputs | 3 | |
Features | - | |
Voltage - Supply | 1.65 V ~ 5.5 V | |
Current - Quiescent (Max) | 10µA | |
Current - Output High, Low | 32mA, 32mA | |
Logic Level - Low | 0.7 V ~ 0.8 V | |
Logic Level - High | 1.7 V ~ 2 V | |
Max Propagation Delay @ V, Max CL | 3.2ns @ 5V, 50pF | |
Operating Temperature | -40°C ~ 125°C | |
Mounting Type | Surface Mount | |

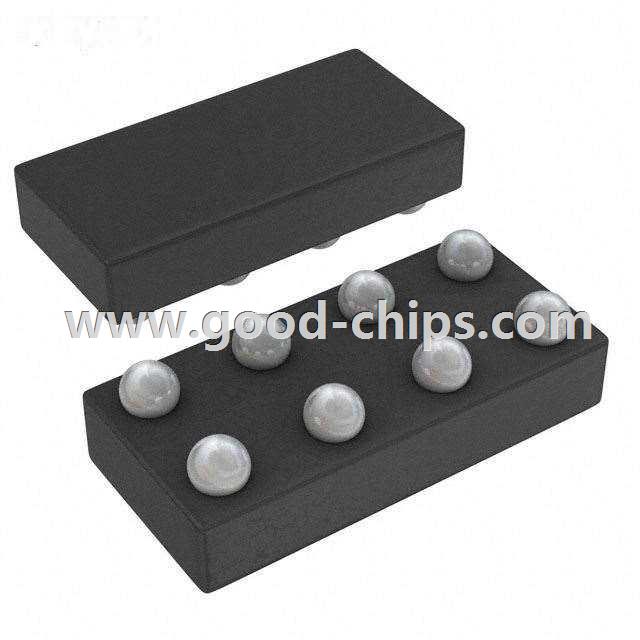

Supplier Device Package | 8-DSBGA, 8-WCSP (1.9x0.9) | |
Package / Case | 8-XFBGA, DSBGA | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SN74LVC3G04YEPR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SN74LVC3G04YEPR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of SN74LVC3G04YEPR is new and unused, you can buy SN74LVC3G04YEPR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SN74LVC3G04YEPR.
