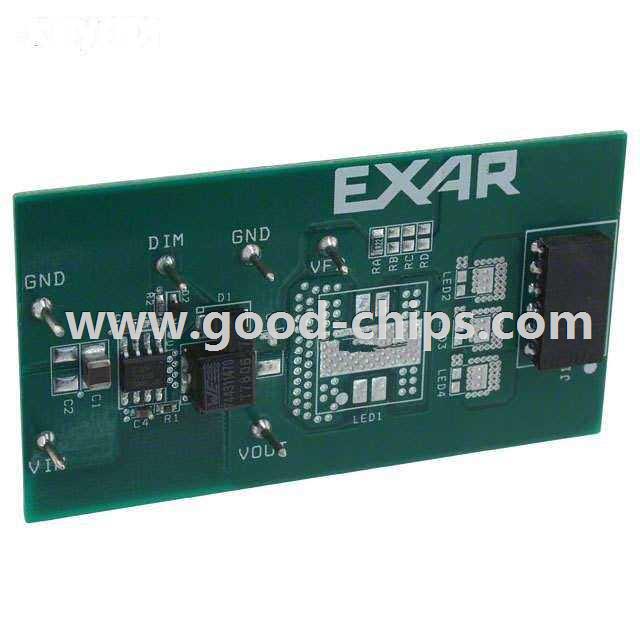

Manufacturer Part Number: | SP7600EB |
---|---|
Manufacturer: | Exar Corporation |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |
Description: | SP7600 1, Non-Isolated Output LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SP7600EB Datasheet |
Internal Part Number | 898-SP7600EB | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector Lighting Product Selector | |
Online Catalog | SP7600 Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | Exar Corporation | |
Series | - | |
Part Status | Active | |
Current - Output / Channel | 2A | |
Outputs and Type | 1, Non-Isolated | |
Voltage - Output | - | |
Features | PWM Brightness control | |
Voltage - Input | 4.5 V ~ 29 V | |
Supplied Contents | Board | |
Utilized IC / Part | SP7600 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SP7600EB | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SP7600EB is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of SP7600EB is new and unused, you can buy SP7600EB Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP7600EB.
