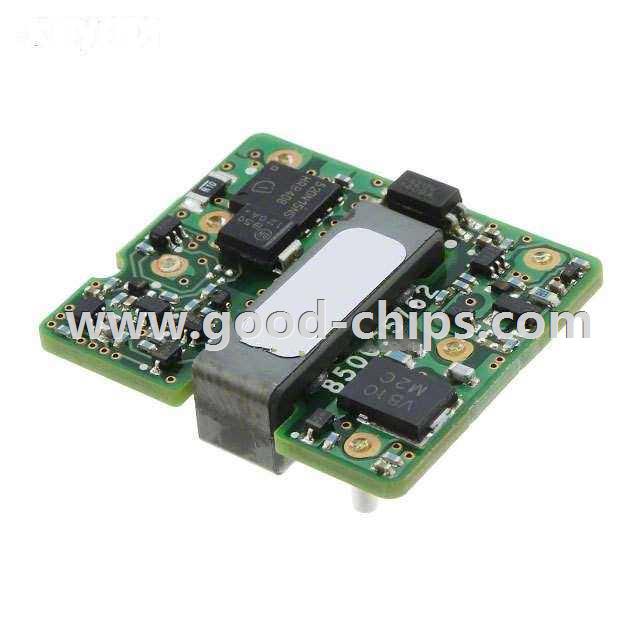

Manufacturer Part Number: | SSTW001A3B41-SRZ |
---|---|
Manufacturer: | GE Critical Power |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | DC/DC CONVERTER 12V 15W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SSTW001A3B41-SRZ Datasheet |
Internal Part Number | 898-SSTW001A3B41-SRZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Manufacturer Product Page | Power Module Wizard™ | |
Online Catalog | Barracuda™ SSTW001A3B Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | GE Critical Power | |
Series | Barracuda™ SSTW001A3B | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 36V | |
Voltage - Input (Max) | 75V | |
Voltage - Output 1 | 12V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 1.3A | |
Power (Watts) - Manufacture Series | 15W | |
Voltage - Isolation | 2.25kV (2250V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | |
Mounting Type | Surface Mount | |
Package / Case | 6-SMD Module | |
Size / Dimension | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 87.5% | |
Power (Watts) - Max | 15W | |
Standard Package | 150 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SSTW001A3B41-SRZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SSTW001A3B41-SRZ is in stock for immediate shipping now. We are the distributor of GE Critical Power all series components. The condition of SSTW001A3B41-SRZ is new and unused, you can buy SSTW001A3B41-SRZ GE Critical Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SSTW001A3B41-SRZ.
