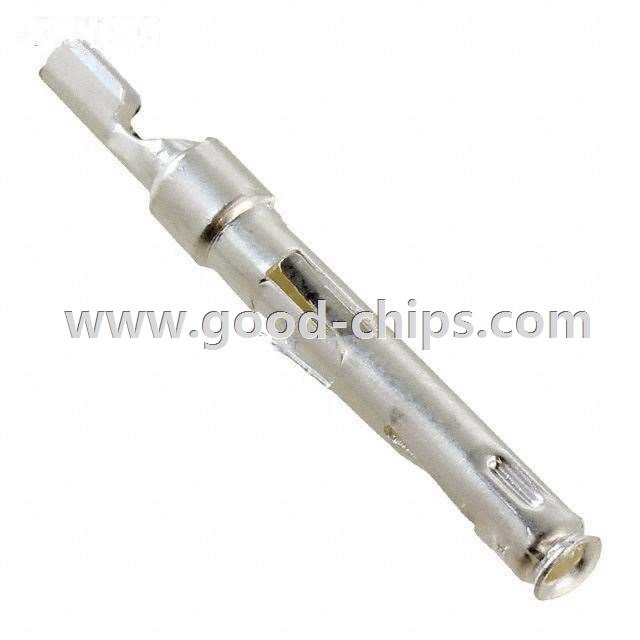

| Manufacturer Part Number: | ST-JL05-16S-C3-100 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Circular Connectors - Contacts |
| Available Quantity: | 9081 Pieces |
| Unit Price: | Quote by Email |
| Description: | Socket Contact 20-24 AWG Size 16 Crimp Silver |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ST-JL05-16S-C3-100 Datasheet |
| Internal Part Number | 898-ST-JL05-16S-C3-100 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | JL05 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors - Contacts | |
| Manufacturer | JAE Electronics | |
| Series | JL05 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Signal, Stamped | |
| Contact Type | Socket | |
| Contact Size | 16 | |
| Wire Gauge or Range - AWG | 20-24 AWG | |
| Wire Gauge or Range - mm² | 0.2 ~ 0.5mm² | |
| Wire Gauge or Range - Coaxial | - | |
| Contact Termination | Crimp | |
| Contact Material | Copper Alloy | |
| Contact Finish | Silver | |
| Contact Finish Thickness | - | |
| Termination Finish | Copper Alloy | |
| Features | Insulation Support | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ST-JL05-16S-C3-100 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ST-JL05-16S-C3-100 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of ST-JL05-16S-C3-100 is new and unused, you can buy ST-JL05-16S-C3-100 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ST-JL05-16S-C3-100.
