| Manufacturer Part Number: | STL4P2UH7 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 20V 4A PWRFLAT2X2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STL4P2UH7 Datasheet |
| Internal Part Number | 898-STL4P2UH7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Low Voltage Power MOSFETs | |
| Online Catalog | P-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | STMicroelectronics | |
| Series | DeepGATE™, STripFET™ VII | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) | |
| Rds On (Max) @ Id, Vgs | 100 mOhm @ 2A, 4.5V | |
| Vgs(th) (Max) @ Id | 1V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 4.8nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 510pF @ 10V | |
| Power - Max | 2.4W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |

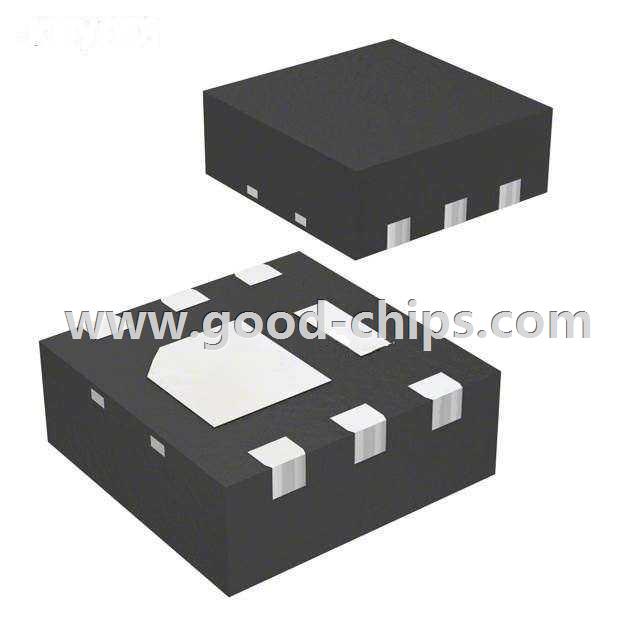

| Package / Case | 6-PowerWDFN | |
| Supplier Device Package | PowerFlat™ (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STL4P2UH7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STL4P2UH7 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STL4P2UH7 is new and unused, you can buy STL4P2UH7 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STL4P2UH7.
