| Manufacturer Part Number: | TAS5414ATPHDQ1 |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Linear - Amplifiers - Audio |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Amplifier IC 4-Channel (Quad) Class D 64-HTQFP (14x14) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TAS5414ATPHDQ1 Datasheet |
| Internal Part Number | 898-TAS5414ATPHDQ1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | TAS5414 Copper Wire 06/Sep/2013 | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Audio | |
| Manufacturer | Texas Instruments | |
| Series | Automotive, AEC-Q100 | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Class D | |
| Output Type | 4-Channel (Quad) | |
| Max Output Power x Channels @ Load | 116W x 2 @ 2 Ohm, 58W x 4 @ 4 Ohm | |
| Voltage - Supply | 8 V ~ 22 V | |
| Features | Depop, I²C, Mute, Short-Circuit and Thermal Protection, Shutdown | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 105°C (TA) | |

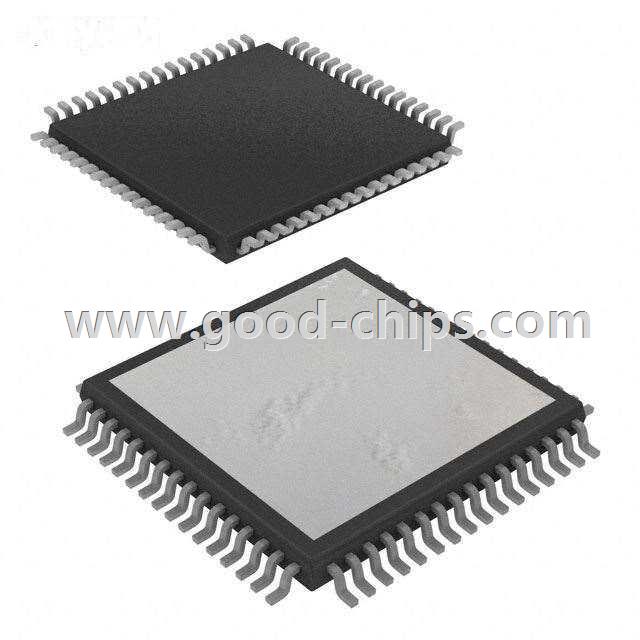

| Supplier Device Package | 64-HTQFP (14x14) | |
| Package / Case | 64-TQFP Exposed Pad | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TAS5414ATPHDQ1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TAS5414ATPHDQ1 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TAS5414ATPHDQ1 is new and unused, you can buy TAS5414ATPHDQ1 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TAS5414ATPHDQ1.
