Manufacturer Part Number: | TC4049BF-ELNF |
---|---|
Manufacturer: | Toshiba Semiconductor and Storage |
Product Category: | Logic - Gates and Inverters |
Available Quantity: | 11010 Pieces |
Unit Price: | Quote by Email |
Description: | Inverter IC 6 Channel 16-SOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TC4049BF-ELNF Datasheet |
Internal Part Number | 898-TC4049BF-ELNF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | TC4x | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Gates and Inverters | |
Manufacturer | Toshiba Semiconductor and Storage | |
Series | TC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Logic Type | Inverter | |
Number of Circuits | 6 | |
Number of Inputs | 6 | |
Features | - | |
Voltage - Supply | 3 V ~ 18 V | |
Current - Quiescent (Max) | 4µA | |
Current - Output High, Low | 8mA, 48mA | |
Logic Level - Low | 1.5 V ~ 4 V | |
Logic Level - High | 3.5 V ~ 11 V | |
Max Propagation Delay @ V, Max CL | 50ns @ 15V, 50pF | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |
Supplier Device Package | 16-SOP | |

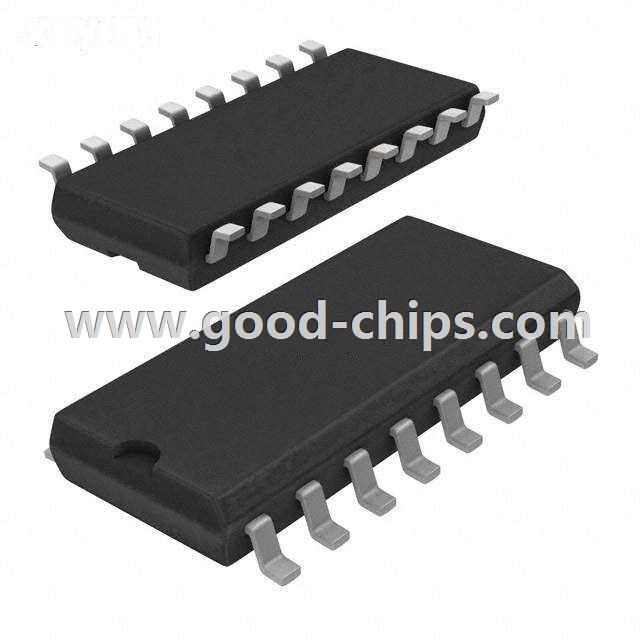

Package / Case | 16-SOIC (0.209", 5.30mm Width) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TC4049BF-ELNF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TC4049BF-ELNF is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TC4049BF-ELNF is new and unused, you can buy TC4049BF-ELNF Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TC4049BF-ELNF.
