| Manufacturer Part Number: | TCA6424ARGJR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Interface - I/O Expanders |
| Available Quantity: | 21010 Pieces |
| Unit Price: | Quote by Email |
| Description: | I/O Expander 24 I²C, SMBus 400kHz 32-UQFN Exposed Pad (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TCA6424ARGJR Datasheet |
| Internal Part Number | 898-TCA6424ARGJR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | TCA6424A 24-bit I-O Expander | |
| PCN Design/Specification | Copper Wire Base Metal 19/Jun/2014 Copper Wire Revision A 25/Jun/2014 Copper Wire Revision B 16/Dec/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | I²C I/O Expanders | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - I/O Expanders | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of I/O | 24 | |
| Interface | I²C, SMBus | |
| Interrupt Output | Yes | |
| Features | POR | |
| Output Type | Push-Pull | |
| Current - Output Source/Sink | 10mA, 25mA | |
| Frequency - Clock | 400kHz | |
| Voltage - Supply | 1.65 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

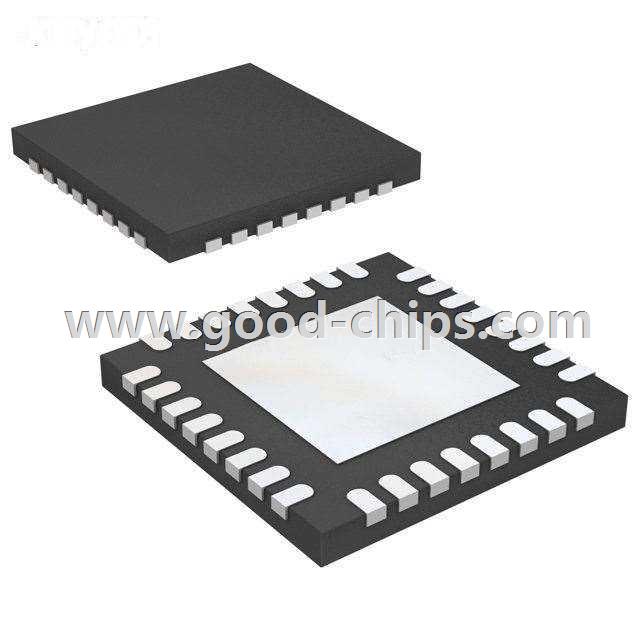

| Package / Case | 32-UFQFN Exposed Pad | |
| Supplier Device Package | 32-UQFN Exposed Pad (5x5) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TCA6424ARGJR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TCA6424ARGJR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TCA6424ARGJR is new and unused, you can buy TCA6424ARGJR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TCA6424ARGJR.
