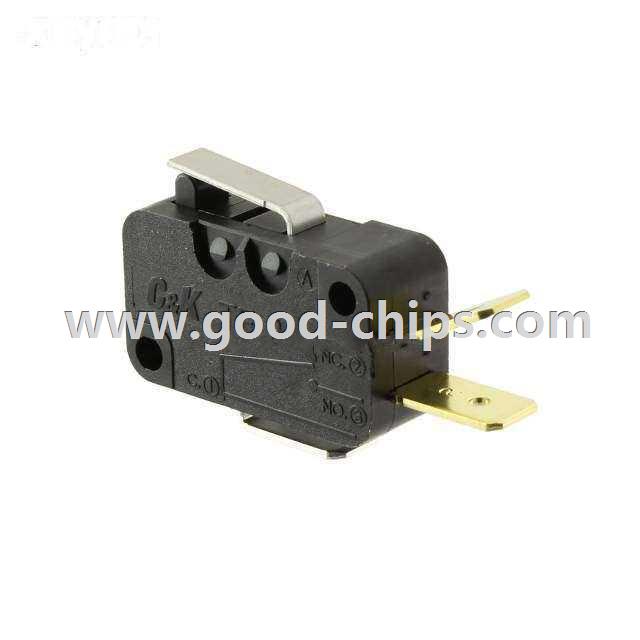

| Manufacturer Part Number: | TF2CFH8ST104AC |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9304 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 6A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TF2CFH8ST104AC Datasheet |
| Internal Part Number | 898-TF2CFH8ST104AC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | TF2 Series Miniature Snap-Acting Switches | |
| Online Catalog | TF2 Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | TF2 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 6A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Lever, Straight | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 45gf | |
| Release Force | 6gf | |
| Pretravel | 0.110" (2.8mm) | |
| Differential Travel | 0.020" (0.5mm) | |
| Overtravel | 0.025" (0.6mm) | |
| Operating Position | 0.602" (15.3mm) | |
| Mechanical Life | - | |
| Electrical Life | 10,000 Cycles | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TF2CFH8ST104AC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TF2CFH8ST104AC is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of TF2CFH8ST104AC is new and unused, you can buy TF2CFH8ST104AC C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TF2CFH8ST104AC.
