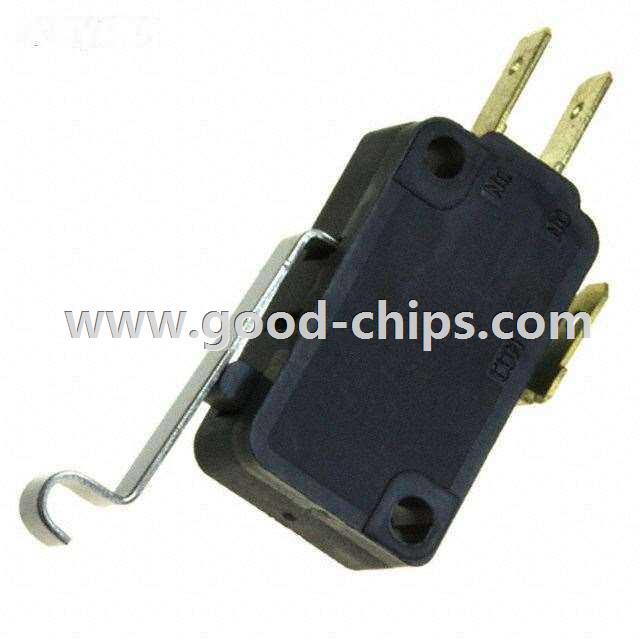

Manufacturer Part Number: | TFCDH8ST1340C |
---|---|
Manufacturer: | C&K Components |
Product Category: | Snap Action, Limit Switches |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |
Description: | SWITCH SNAP ACTION SPDT 5A 277V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TFCDH8ST1340C Datasheet |
Internal Part Number | 898-TFCDH8ST1340C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Sub-Miniature Snap Switches | |
Category | Switches | |
Family | Snap Action, Limit Switches | |
Manufacturer | C&K Components | |
Series | TF | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Current Rating | 5A (AC) | |
Voltage Rating - AC | 277V | |
Voltage Rating - DC | - | |
Actuator Type | Lever, Simulated Roller | |
Mounting Type | Chassis Mount | |
Termination Style | Quick Connect - 0.187" (4.7mm) | |
Ingress Protection | - | |
Features | - | |
Operating Force, Torque | 12gf | |
Release Force | 4gf | |
Pretravel | 0.100" (2.5mm) | |
Differential Travel | 0.030" (0.76mm) | |
Overtravel | 0.065" (1.7mm) | |
Operating Position | 0.812" (20.6mm) | |
Mechanical Life | - | |
Electrical Life | 300,000 Cycles | |
Operating Temperature | -40°C ~ 85°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TFCDH8ST1340C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TFCDH8ST1340C is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of TFCDH8ST1340C is new and unused, you can buy TFCDH8ST1340C C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TFCDH8ST1340C.
