| Manufacturer Part Number: | TFSB10055375-1103A1 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | RF Filters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | THIN FILM BANDPASS 5GHZ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TFSB10055375-1103A1 Datasheet |
| Internal Part Number | 898-TFSB10055375-1103A1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | TFSB,TFSD 10/Aug/2016 | |
| PCN Design/Specification | TFS Series Marking 30/Oct/2015 | |
| PCN Packaging | TFS Carrier Tape 23/Jun/2014 | |
| Category | Filters | |
| Family | RF Filters | |
| Manufacturer | TDK Corporation | |
| Series | * | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Frequency | * | |
| Bandwidth | * | |
| Filter Type | * | |
| Ripple | * | |
| Insertion Loss | * | |

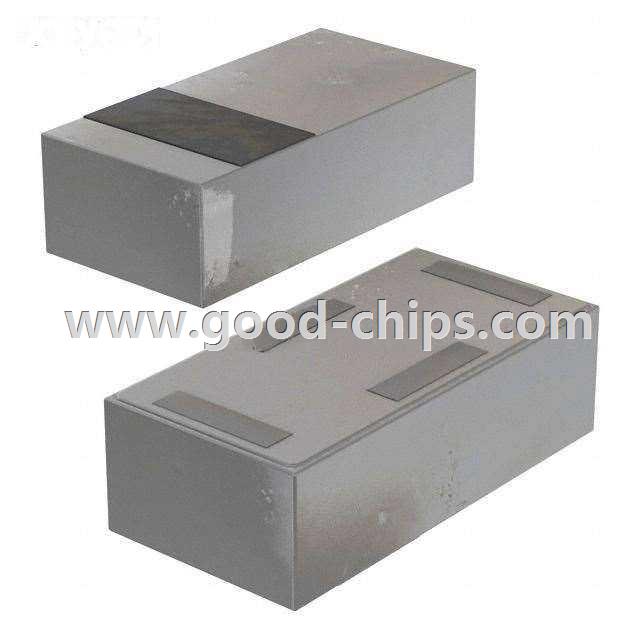

| Package / Case | 0402 (1005 Metric), 4 PC Pad | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.016" (0.40mm) | |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TFSB10055375-1103A1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TFSB10055375-1103A1 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of TFSB10055375-1103A1 is new and unused, you can buy TFSB10055375-1103A1 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TFSB10055375-1103A1.
