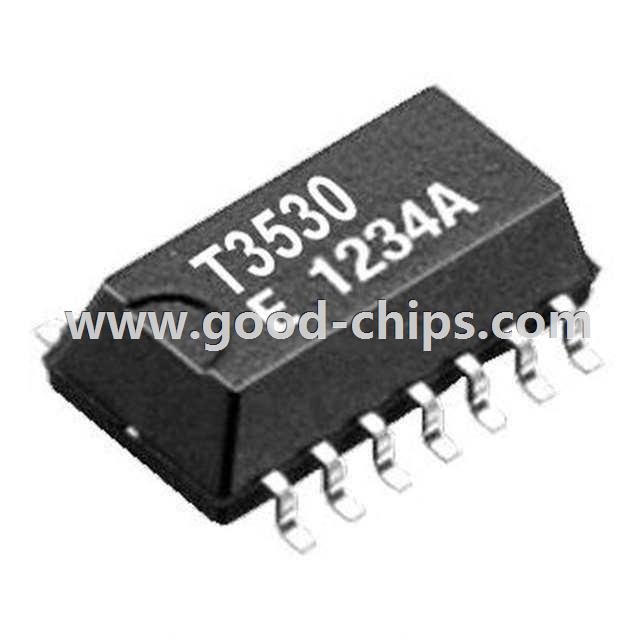

Manufacturer Part Number: | TG-3530SA 32.7680KHZ:PURE SN |
---|---|
Manufacturer: | EPSON |
Product Category: | Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 32.768kHz CMOS TCXO Oscillator Surface Mount 1.5 V ~ 5.5 V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TG-3530SA 32.7680KHZ:PURE SN Datasheet |
Internal Part Number | 898-TG-3530SA 32.7680KHZ:PURE SN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | SPXO and VCXO | |
PCN Design/Specification | TCXO 2016,2520 30/May/2014 | |
Category | Crystals and Oscillators | |
Family | Oscillators | |
Manufacturer | EPSON | |
Series | TG-3530SA | |
Packaging | Bulk | |
Part Status | Active | |
Type | TCXO | |
Frequency | 32.768kHz | |
Function | - | |
Output | CMOS | |
Voltage - Supply | 1.5 V ~ 5.5 V | |
Frequency Stability | - | |
Operating Temperature | -40°C ~ 85°C | |
Current - Supply (Max) | - | |
Ratings | - | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.398" L x 0.197" W (10.10mm x 5.00mm) | |
Height | 0.130" (3.30mm) | |
Package / Case | 14-SOIC (0.209", 5.30mm Width) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TG-3530SA 32.7680KHZ:PURE SN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TG-3530SA 32.7680KHZ:PURE SN is in stock for immediate shipping now. We are the distributor of EPSON all series components. The condition of TG-3530SA 32.7680KHZ:PURE SN is new and unused, you can buy TG-3530SA 32.7680KHZ:PURE SN EPSON with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TG-3530SA 32.7680KHZ:PURE SN.
