| Manufacturer Part Number: | TMS320LF2402APGA |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9076 Pieces |
| Unit Price: | Quote by Email |
| Description: | C2xx DSP C2000™ C24x 16-Bit Microcontroller IC 16-Bit 40MHz 16KB (8K x 16) FLASH 64-QFP (14x20) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TMS320LF2402APGA Datasheet |
| Internal Part Number | 898-TMS320LF2402APGA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Microcontrollers: ControlSUITE - Comprehensive software for the entire design process TPS75005 Single IC Power for C2000 MCU Intro to Timers and Clocks Microcontrollers: SYS/BIOS: Introduction to Real-Time Operating Systems and SYS/BIOS | |
| Video File | Let TI and MathWorks help you launch your next motor control design - in cooperation with Digi-Key | |
| Design Resources | Development Tool Selector | |
| Manufacturer Product Page | TMS320LF2402APGA Specifications | |
| Online Catalog | TMS320F240x | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Texas Instruments | |
| Series | C2000™ C24x 16-Bit | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | C2xx DSP | |
| Core Size | 16-Bit | |
| Speed | 40MHz | |
| Connectivity | SCI | |
| Peripherals | POR, PWM, WDT | |
| Number of I/O | 21 | |
| Program Memory Size | 16KB (8K x 16) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 2K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 3.6 V | |
| Data Converters | A/D 8x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

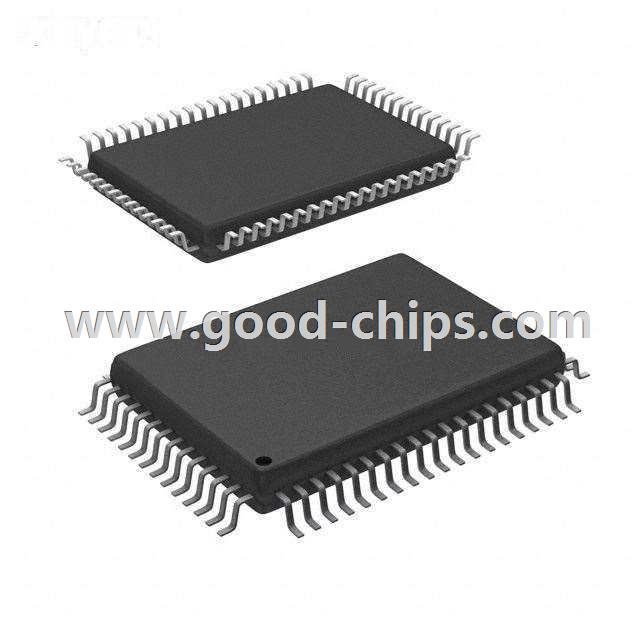

| Package / Case | 64-BQFP | |
| Supplier Device Package | 64-QFP (14x20) | |
| Standard Package | 66 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TMS320LF2402APGA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TMS320LF2402APGA is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TMS320LF2402APGA is new and unused, you can buy TMS320LF2402APGA Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TMS320LF2402APGA.
