| Manufacturer Part Number: | TPS2226DB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9119 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC PWR INTRFCE SWITCH 1A 30-SSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS2226DB Datasheet |
| Internal Part Number | 898-TPS2226DB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | PCMCIA/Cardbus Switch | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Switch Type | PCMCIA Switch | |
| Number of Outputs | 4 | |
| Ratio - Input:Output | 3:4 | |
| Output Configuration | High Side | |
| Output Type | - | |
| Interface | Serial | |
| Voltage - Load | 3.3V, 5V, 12V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 1A | |
| Rds On (Typ) | 95 mOhm | |
| Input Type | - | |
| Features | Status Flag | |
| Fault Protection | Current Limiting (Fixed), Over Temperature | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

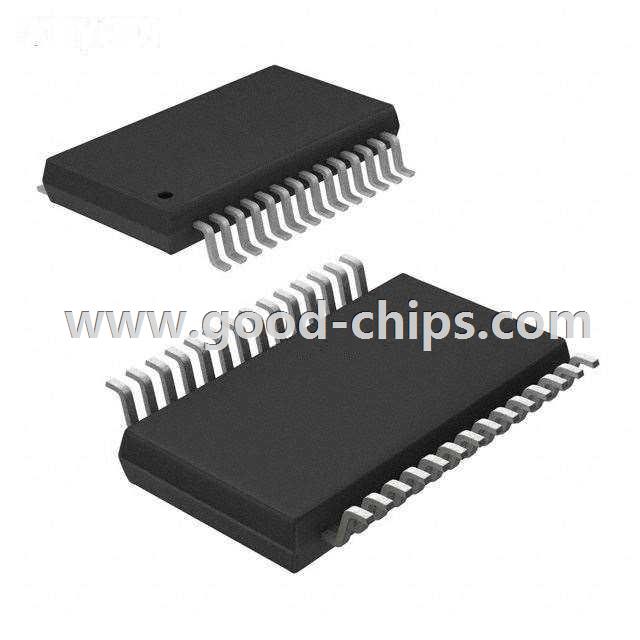

| Package / Case | 30-SSOP (0.209", 5.30mm Width) | |
| Supplier Device Package | 30-SSOP | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS2226DB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS2226DB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TPS2226DB is new and unused, you can buy TPS2226DB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS2226DB.
