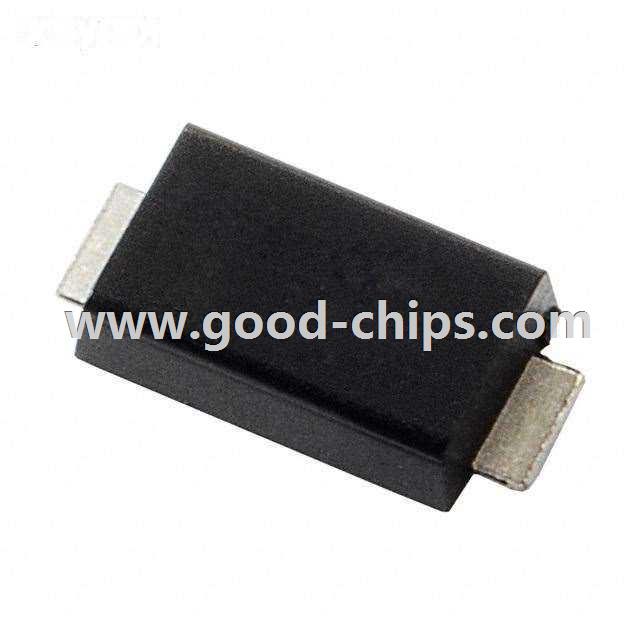

| Manufacturer Part Number: | TPSMA6L18A |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | TVS - Diodes |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 18VWM 29.2VC SMA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPSMA6L18A Datasheet |
| Internal Part Number | 898-TPSMA6L18A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Transient Voltage Suppression (TVS) Diodes | |
| Featured Product | TPSMA6L Series TVS Diodes 600 W AECQ Qualified | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | TPSMA6L Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Littelfuse Inc. | |
| Series | Automotive, AEC-Q101, TPSMA6L | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 18V | |
| Voltage - Breakdown (Min) | 20V | |
| Voltage - Clamping (Max) @ Ipp | 29.2V | |
| Current - Peak Pulse (10/1000µs) | 20.6A | |
| Power - Peak Pulse | 600W | |
| Power Line Protection | No | |
| Applications | Automotive | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -50°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-221AC, SMA Flat Leads | |
| Supplier Device Package | DO-221AC | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPSMA6L18A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPSMA6L18A is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of TPSMA6L18A is new and unused, you can buy TPSMA6L18A Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPSMA6L18A.
