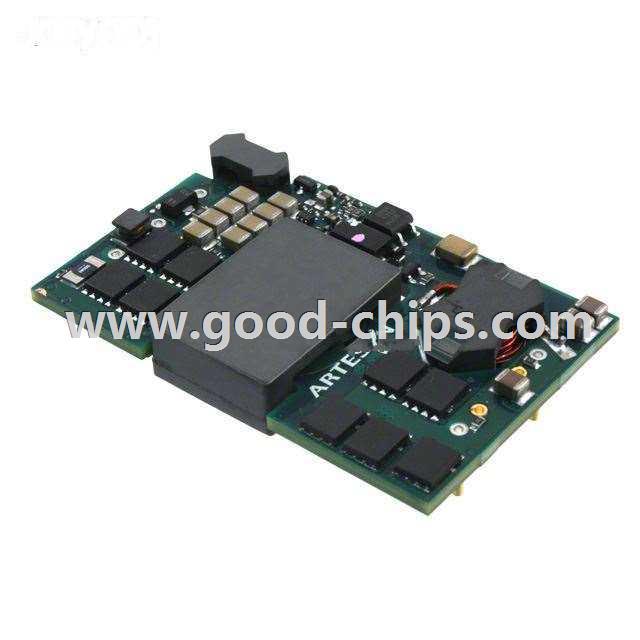

| Manufacturer Part Number: | TQW14A-48S12RJ |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV IBC 36-75V 14A 12V OUT 168W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TQW14A-48S12RJ Datasheet |
| Internal Part Number | 898-TQW14A-48S12RJ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | TQW | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Type | Intermediate Bus Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 14A | |
| Power (Watts) - Manufacture Series | 168W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 5-DIP Module, 1/4 Brick | |
| Size / Dimension | 2.30" L x 1.46" W x 0.41" H (58.4mm x 37.1mm x 10.4mm) | |
| Operating Temperature | -40°C ~ 100°C | |
| Efficiency | 94.5% | |
| Power (Watts) - Max | 168W | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TQW14A-48S12RJ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TQW14A-48S12RJ is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of TQW14A-48S12RJ is new and unused, you can buy TQW14A-48S12RJ Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TQW14A-48S12RJ.
