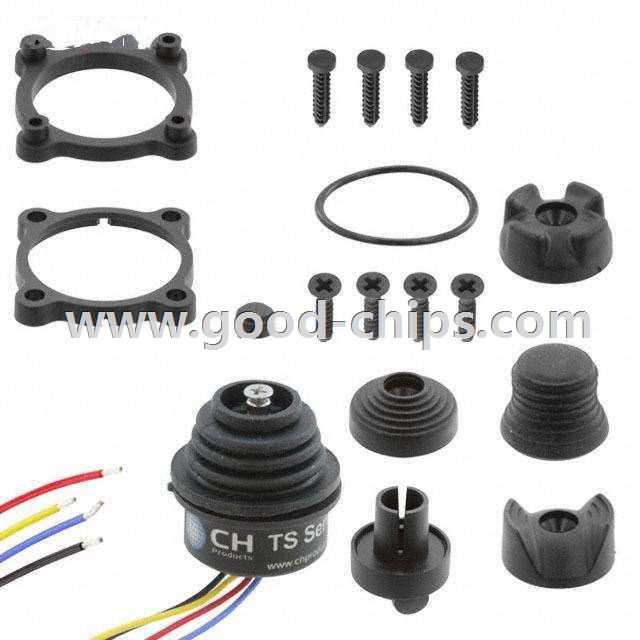

Manufacturer Part Number: | TSAA1S09A |
---|---|
Manufacturer: | Apem Inc. |
Product Category: | Navigation Switches, Joystick |
Available Quantity: | 9028 Pieces |
Unit Price: | Quote by Email |
Description: | Thumbstick, 2 - Axis Analog (Hall Effect) Output |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TSAA1S09A Datasheet |
Internal Part Number | 898-TSAA1S09A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Joysticks - Hall Effects Based TS Series Miniature Hall Effect Joysticks | |
Featured Product | Hall-Effect Joysticks | |
Online Catalog | TS Series | |
Category | Switches | |
Family | Navigation Switches, Joystick | |
Manufacturer | Apem Inc. | |
Series | TS | |
Part Status | Active | |
Type | Thumbstick, 2 - Axis | |
Actuator Type | Multiple | |
Switch Function | 4-Way Directional | |
Functions, Extra | - | |
Output | Analog (Hall Effect) | |
Voltage - Supply | 5VDC | |
Current Rating | - | |
Voltage Rating - AC | - | |
Voltage Rating - DC | - | |
Contact Material | - | |
Contact Finish | - | |
Mounting Type | Panel Mount | |
Termination Style | Wire Leads | |
Operating Temperature | -40°C ~ 85°C | |
Panel Cutout Dimensions | Circular - 25.65mm Dia | |
Ingress Protection | IP68/69K - Dust Tight, Water Resistant, Waterproof | |
Features | - | |
Mechanical Life | 1,000,000 Cycles | |
Electrical Life | - | |
Operating Force | 310gf | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TSAA1S09A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TSAA1S09A is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of TSAA1S09A is new and unused, you can buy TSAA1S09A Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TSAA1S09A.
