| Manufacturer Part Number: | TSC2003IZQCR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Data Acquisition - Touch Screen Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

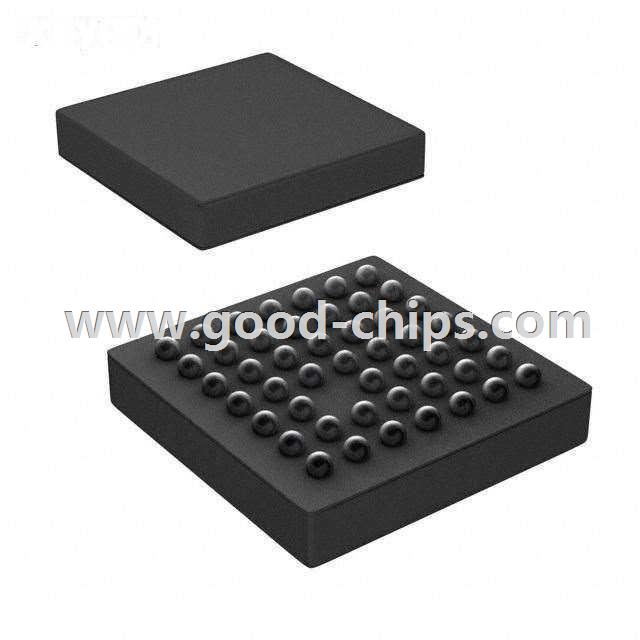

| Description: | Touchscreen Controller 4-Wire 12 bit I²C Interface 48-BGA MICROSTAR JUNIOR (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TSC2003IZQCR Datasheet |
| Internal Part Number | 898-TSC2003IZQCR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Data Converter Basics | |
| Manufacturer Product Page | TSC2003IZQCR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Touch Screen Controllers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Resistive | |
| Touch Panel Interface | 4-Wire | |
| Number of Inputs/Keys | 1 TSC | |
| Resolution (Bits) | 12 b | |
| Evaluation Tools | Available | |
| Data Interface | I²C | |
| Data Rate/Sampling Rate (SPS, BPS) | 50k | |
| Voltage Reference | Internal | |
| Voltage - Supply | 2.5 V ~ 5.25 V | |
| Current - Supply | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 48-VFBGA | |
| Supplier Device Package | 48-BGA MICROSTAR JUNIOR (4x4) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TSC2003IZQCR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TSC2003IZQCR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TSC2003IZQCR is new and unused, you can buy TSC2003IZQCR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TSC2003IZQCR.
